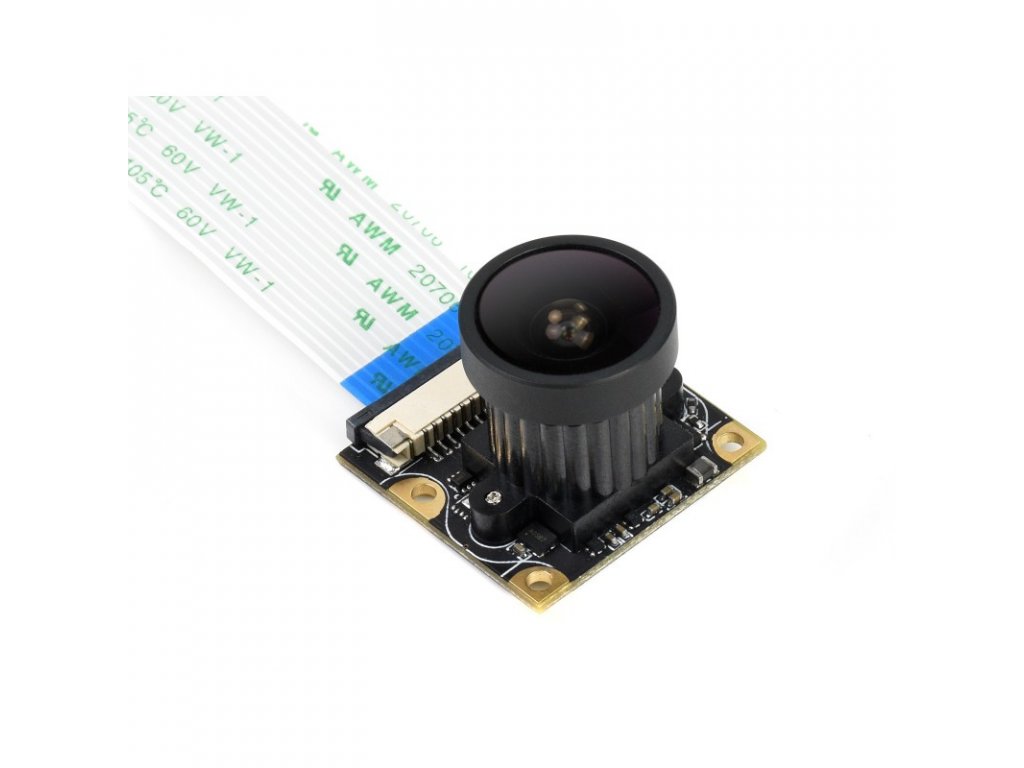

IMX477-160 12.3MP Camera, 160° FOV, Applicable for Raspberry Pi / Jetson Nano
IMX477-160 12.3MP Camera, 160° FOV, Applicable for Raspberry Pi / Jetson Nano SKU: 19211
IMX477-160 12.3MP Camera, 160° FOV, Applicable For Raspberry Pi / Jetson Nano
12.3MP CAMERA MODULE
IMX477 Sensor, 12.3MP, Applicable For Raspberry Pi / Jetson Nano Series Boards
Specifications
| SENSOR | Model | IMX477 |
|---|---|---|
| Resolution | 12.3MP, 4056 × 3040 | |
| CMOS diagonal length | 7.9mm | |
| pixel size | 1.55µm (H) × 1.55µm (V) | |
| CAMERA | Aperture (F) | 2.2 |
| Focal length (BFL) | 2.75 | |
| Field of view (FOV) | 160°(D) 118°(H) 87°(V) | |
| Distortion | <16% | |
| OPERATING VOLTAGE | 3.3V | |
| APPLICATIONS | suitable for AI applications like: facial recognition, road mark recognition, license plate number recognition, and so on. | |

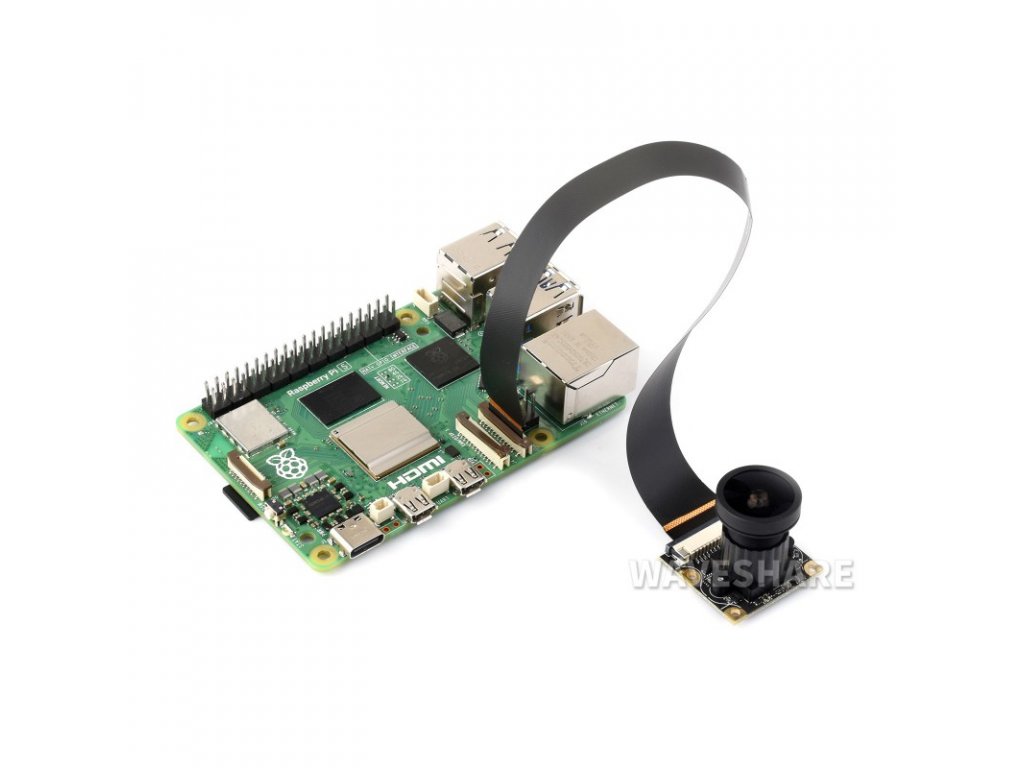

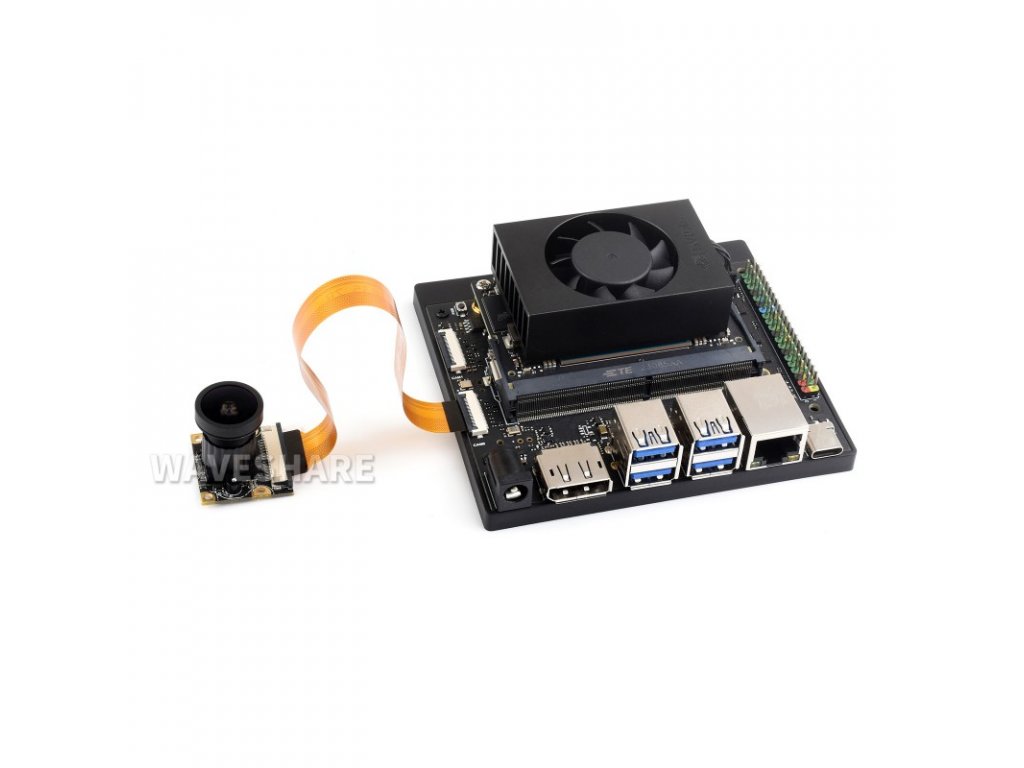

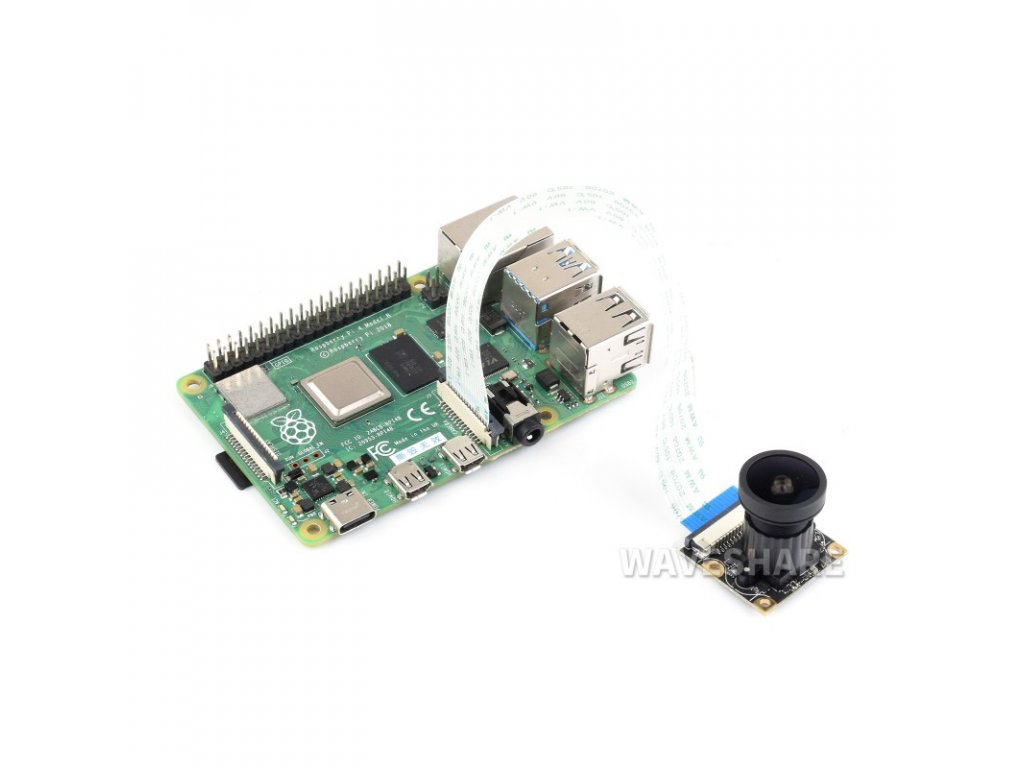

* for reference only, Raspberry Pi 4B, Raspberry Pi 5, Compute Module 4 IO Board, Zero 2 W, Jetson Nano Kit, Jetson Orin Kit, black FPC and yellow FPC are NOT included.
Outline Dimensions
