Orange PI R1 Dual Lan Port Single Chip with 256MB DDR3 SDRAM
Orange PI R1 Dual Lan Port Single Chip with 256MB DDR3 SDRAM
Orange PI R1 Dual Lan Port Single Chip with 256MB DDR3 SDRAM
Orange PI R1 Dual Lan Port Single Chip with 256MB DDR3 SDRAM
Hardware specification | |
| CPU | H2 Quad-core Cortex-A7 H.265 |
| GPU | Mali400MP2 GPU @600MHz, Supports OpenGL ES 2.0 |
| Memory (SDRAM) | 256MB DDR3 (shared with GPU) |

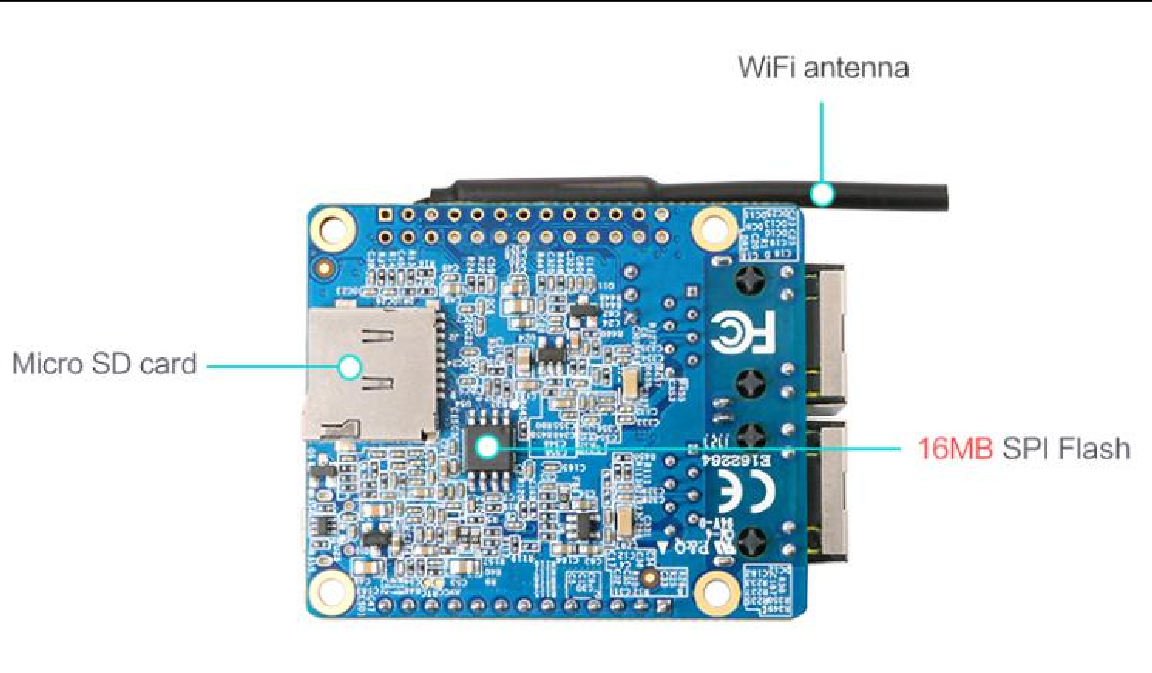

| On-board Storage | TF card (Max. 32GB) /Spi flash(16MB) |
| Wifi Antenna | Yes |
| On-board Network | 100M/10M Ethernet RJ45 (on board Ethernet ) |
| Onboard WIFI | RTL8189ETV, IEEE 802.11 b/g/n |
| Video Input | Support output via 13pin(AV-out) |
| Video Outputs | Support output via 13pin(cvbs) |
| Power Source | USB OTG can supply power |
| Buttons | Power button |
| Low-level peripherals | 26 Pins Header, compatible with Raspberry Pi B+ 13 Pins Header, with 2x USB, IR pin, AUDIO |
| GPIO(1x3) pin | UART, ground. |
| LED | Power led & Status led |
| Supported OS | Android, Lubuntu, Debian, Armbian Image |
Interface definition | |
| Product size | 45mm × 60mm |
| Weight | 48g |
| OrangePi_R1(H2) | ||
| CON3-P01 | VCC-3V3 | |
| CON3-P02 | VCC-5V | |
| CON3-P03 | TWI0-SDA | PA12 |
| CON3-P04 | VCC-5V | |
| CON3-P05 | TWI0-SCK | PA11 |
| CON3-P06 | GND | |
| CON3-P07 | PWM1 | PA6 |
| CON3-P08 | UART1_TX | PG6 |
| CON3-P09 | GND | |
| CON3-P10 | UART1_RX | PG7 |
| CON3-P11 | UART2_RX | PA1 |
| CON3-P12 | PA7 | PA7 |
| CON3-P13 | UART2_TX | PA0 |
| CON3-P14 | GND | |
| CON3-P15 | UART2_CTS | PA3 |
| CON3-P16 | TWI1-SDA | PA19 |
| CON3-P17 | VCC3V3-EXT | |
| CON3-P18 | TWI1-SCK | PA18 |
| CON3-P19 | SPI1_MOSI | PA15 |
| CON3-P20 | GND | |
| CON3-P21 | SPI0_MISO | PA16 |
| CON3-P22 | UART2_RTS | PA2 |
| CON3-P23 | SPI0_CLK | PA14 |
| CON3-P24 | SPI1_CS | PA13 |
| CON3-P25 | GND | |
| CON3-P26 | PA10 | PA10 |
Orange PI R1 Dual Lan Port Development Board Single Chip with 256MB DDR3 SDRAM
CPU:H2 Quad-core 32-bit Cortex-A7
Dodatočné parametre
| Kategória: | Mikropočítače |
|---|---|
| Záruka: | 2 roky |
