1.9inch LCD Display Module, 170×320 Resolution, SPI Interface, IPS, 262K Colors
1.9inch LCD Display Module, 170×320 Resolution, SPI Interface, IPS, 262K Colors
SKU: 23822
1.9inch LCD Display Module, 170×320 Resolution, SPI Interface, IPS, 262K Colors
1.9inch LCD Display Module
Embedded ST7789V2 driver chip, Using SPI Interface
Comes with examples for Raspberry Pi, Arduino, STM32, etc.
- Size
1.9" - Resolution
170×320 - Display Color
262K - Interface
SPI - Display Panel
IPS - Driver
ST7789V2
Features at a glance
- 170×320 resolution, 262K colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
| Operating voltage | 3.3V / 5V | Resolution | 170 × 320 pixels |
|---|---|---|---|
| Communication Interface | 4-wire SPI | Display size | 22.70 × 42.72 mm |
| DISPLAY PANEL | IPS | PIXEL SIZE | 0.1335 × 0.1335 mm |
| Driver | ST7789V2 | Module size | 27.3 × 51.2mm |
Onboard Voltage Translator
Compatible With 3.3V / 5V Power input
Onboard SPI Control Interface
For Use With Controller Boards Like Raspberry Pi / Arduino / STM32

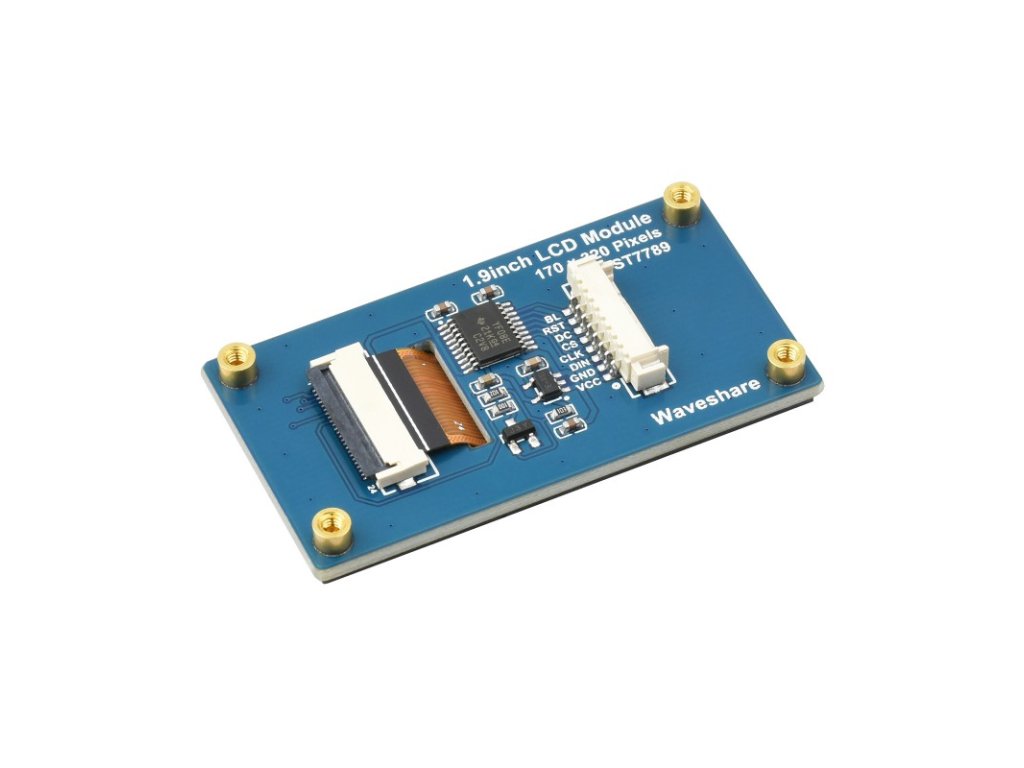

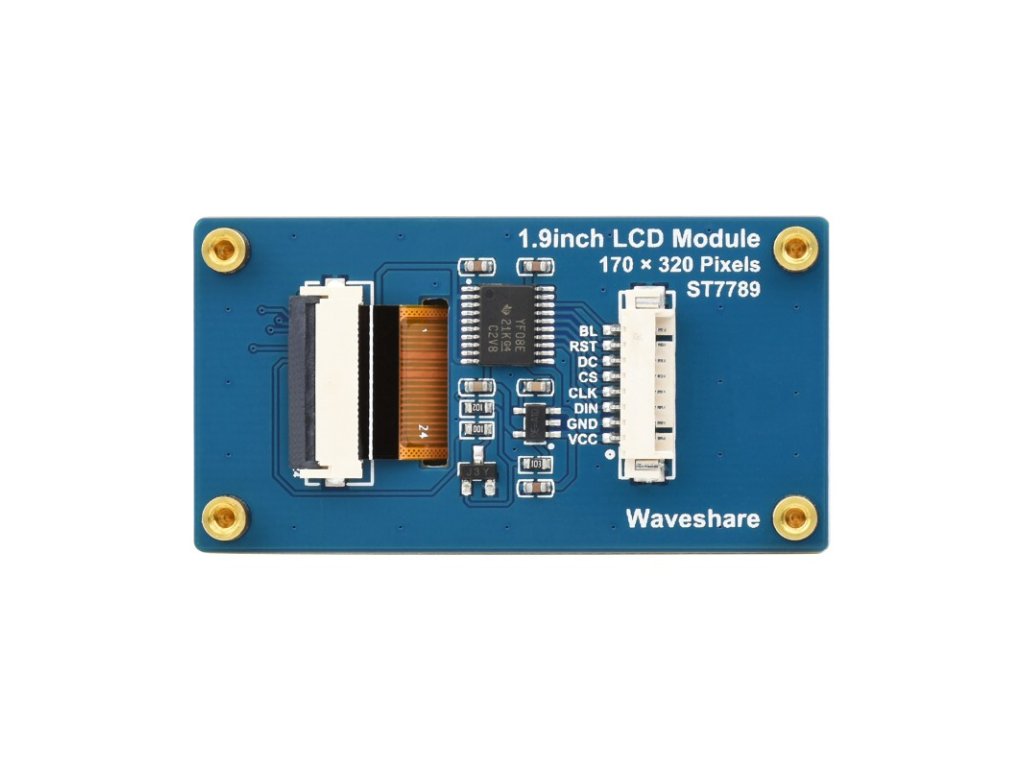

| BL | Backlight |
|---|---|
| RST | Reset, low active |
| DC | Data/Command selection (high for data, low for command) |
| CS | Chip selection, low active |
| CLK | SPI clock input |
| DIN | SPI data input |
| GND | Ground |
| VCC | Power (3.3V / 5V input) |

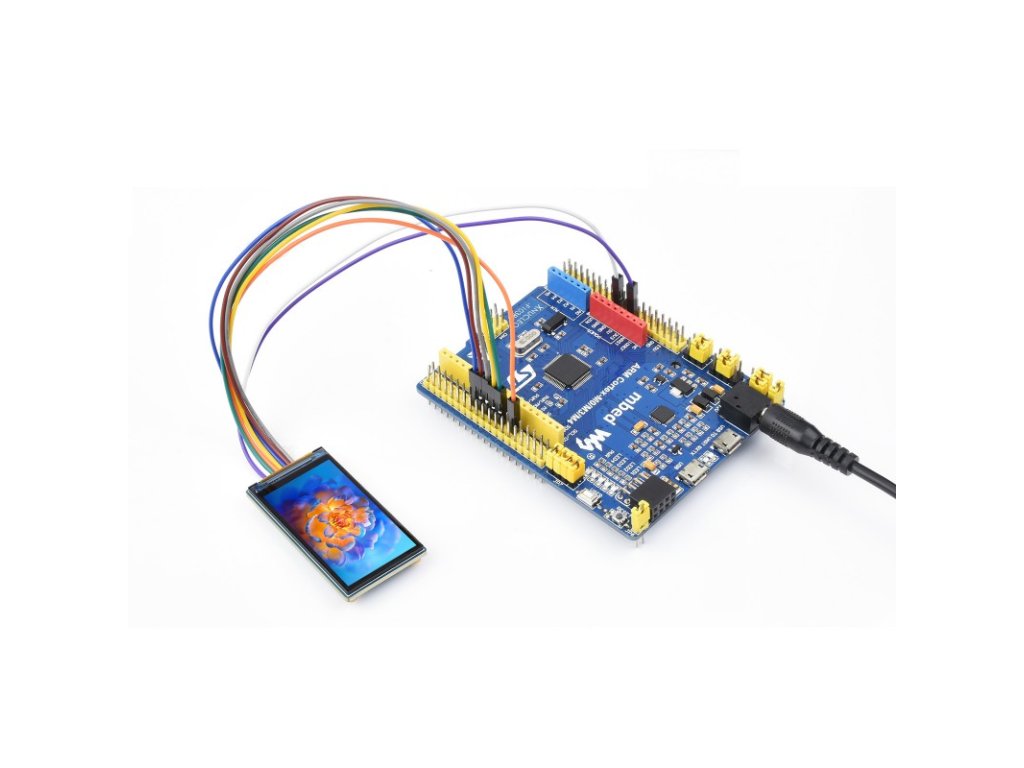

Hardware connection

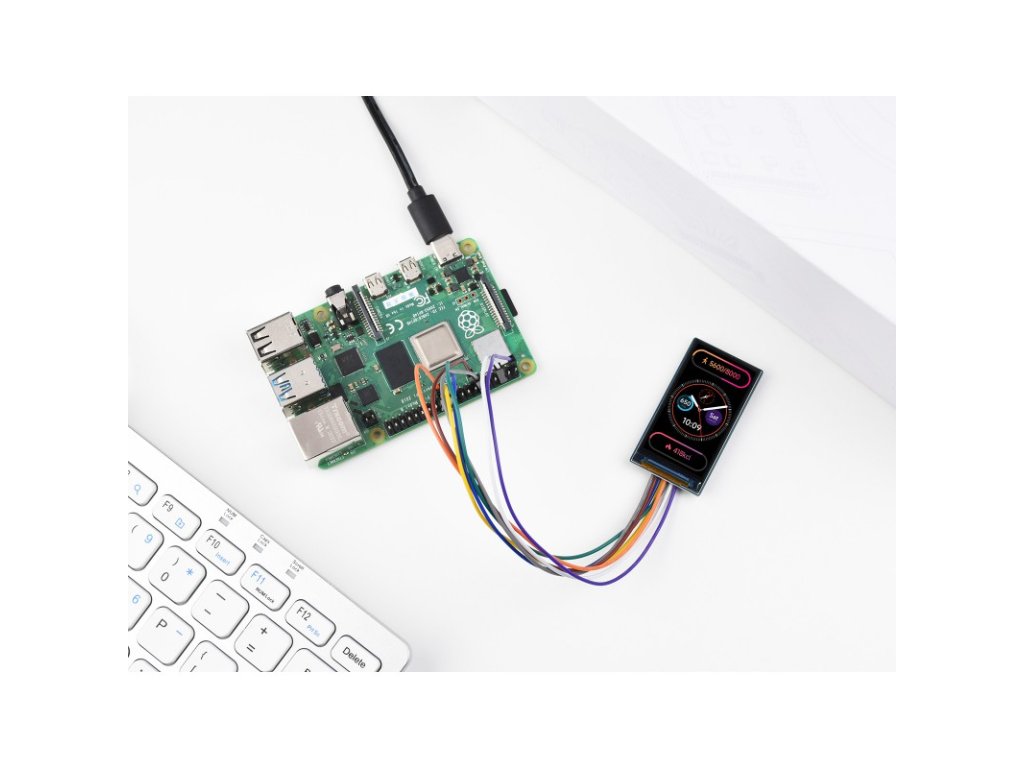

connecting with Raspberry Pi
connecting with Arduino board
connecting with STM32
Usage Example
Product Show
Outline dimensions
Balenie obsahuje:
Weight: 0.015 kg
- 1.9inch LCD Module x1
- MX1.25 8PIN cable x1
