    14inch 2K Capacitive Touch Display, 2160×1440, High Resolution image quality, 10-Point Touch

    Neohodnotené
    Značka: Waveshare

    14inch 2K Capacitive Touch Display, 2160×1440, High Resolution image quality, 10-Point Touch, Optical Bonding Toughened Glass Panel

    SKU: 28505

    Dostupnosť Skladom (1 ks)
    Môžeme doručiť do:
    9.12.2025
    Možnosti doručenia
    Kód: 24031
    215,87 € / ks 175,50 € bez DPH
    14inch 2K Capacitive Touch Display, 2160×1440, High Resolution image quality, 10-Point Touch
    Neohodnotené
    Značka: Waveshare
    14inch 2160 1440 lcd 1
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 12:30
    Do 12:30 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov

    14inch 2K Capacitive Touch Display, 2160×1440, High Resolution image quality, 10-Point Touch, Optical Bonding Toughened Glass Panel

    14inch 2K Capacitive Touch Display, 2160×1440, High Resolution image quality, 10-Point Touch, Optical Bonding Toughened Glass Panel, 72%NTSC, 100%sRGB
    14″ 2K Capacitive Touch Display

    High Resolution | Full Color | 10-Point Touch

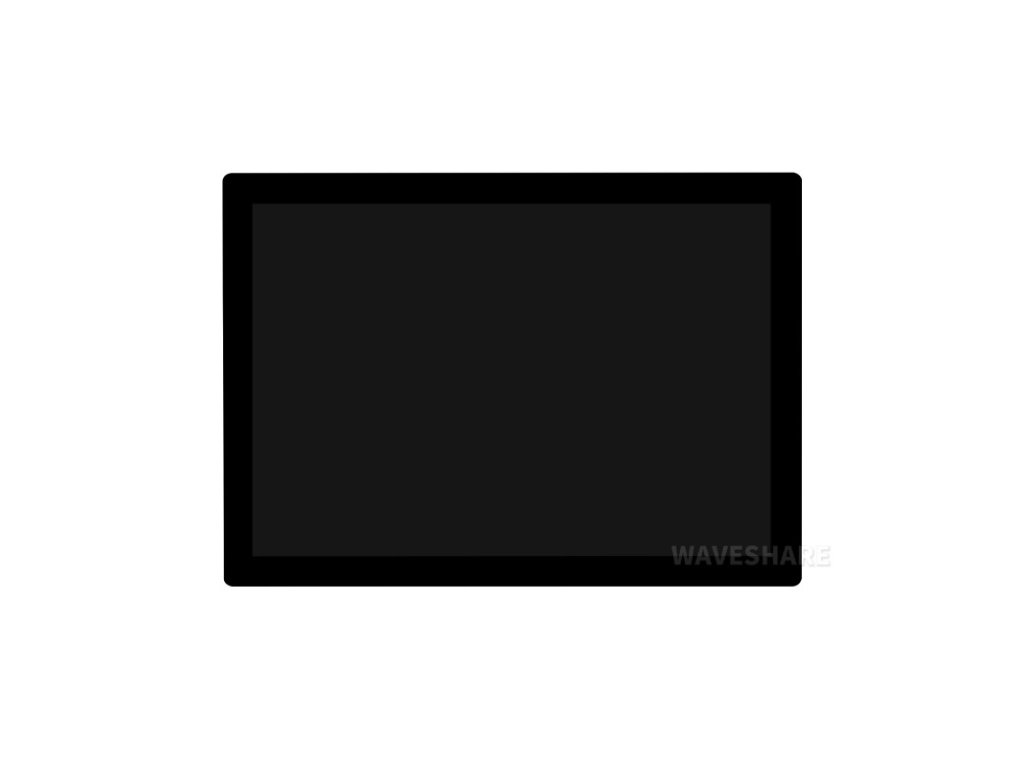

     14inch 2K Capacitive Touch Display, front view




    • Size14″
    • Resolution2160×1440
    • Display InterfaceHDMI/Type-C/DP
    • Display PanelIPS
    • Viewing Angle178°
    • Touch TypeCapacitive
    • Touch Points10-Point
    • Touch PortType-C
    • Touch PanelToughened Glass
    • Touch Panel TechOptical Bonding
    • Audio Output 13.5mm Jack
    • Audio Output 24PIN Header
    • Brightness400cd/㎡
    • OSD MenuBrightness/Contrast
    • BrightnessDDC/CI Control
    • SmartphoneHuawei/Samsung/OPPO...
    • VESA Wall Mount50 × 50mm


    Device & System Support


    Raspberry Pi
    Supports Raspberry Pi OS, 10-point touch, driver free
    Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
    Supports Retropie, driver free

    Supports all versions of Raspberry Pi

    Jetson Series
    Supports Jetson Nano / TX2 / Xavier NX / Orin series boards
    Supports Ubuntu, single point touch, driver free
    PC
    Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
    Smartphone
    Huawei, Samsung...(wired projection)

    Automatic recognition of three signal sources

    Supports automatic recognition of HDMI / DP / Type-C signal sources

     14inch 2K Capacitive Touch Display, supports three signal sources

    * for reference only, please refer to the package content for the detailed part list.


    Connection Examples

    Working with Raspberry Pi 5

    14inch 2K Capacitive Touch Display, working with Raspberry Pi 5

    Working with Jetson series board

    14inch 2K Capacitive Touch Display, working with Jetson series board

    Working with mini PC

    14inch 2K Capacitive Touch Display, working with mini PC

    Working with laptop

    14inch 2K Capacitive Touch Display, working with laptop

    Working with Smartphone

    14inch 2K Capacitive Touch Display, working with smartphone
    • Please make sure that the laptop or smartphone itself features a full-featured Type-C interface
    • For reference only, the above controller boards or hosts are NOT included

    Wide viewing angle IPS display panel

    Excellent Display & Color Performance
    Wide viewing angle up to 178°, color gamut up to 72% NTSC
    100% sRGB covers more gamut area of red, green and blue, Designer-professional-grade color gamut

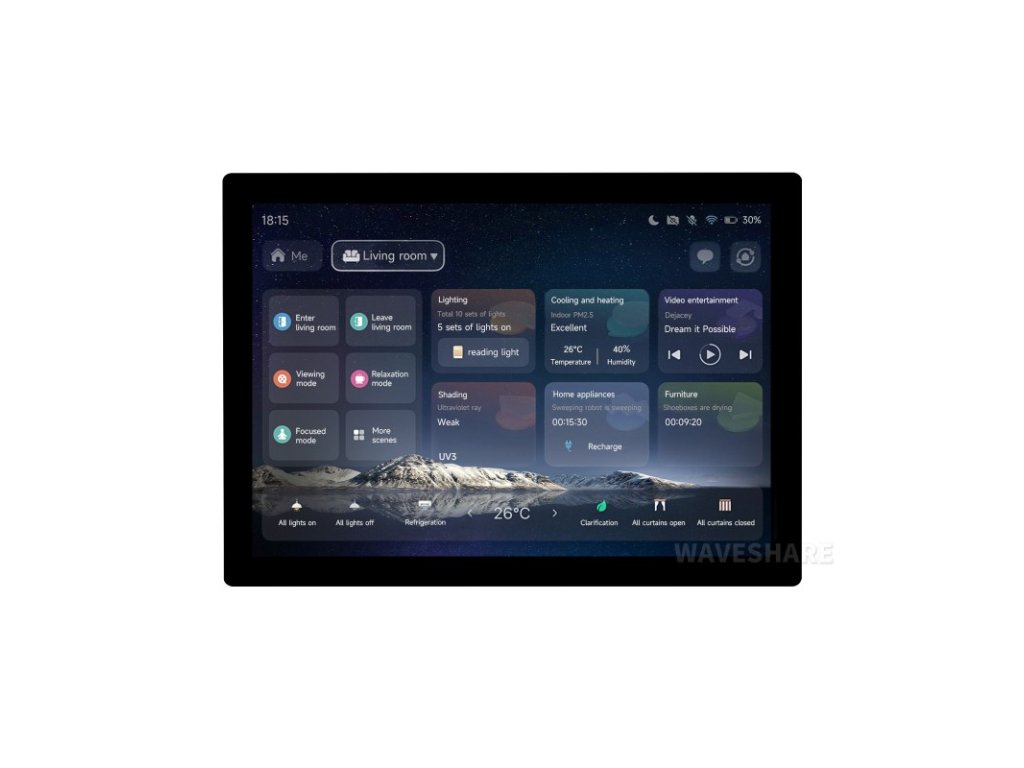

    14inch 2K Capacitive Touch Display, wide viewing angle IPS display panel

    10-Point Capacitive Touch
    14inch 2K Capacitive Touch Display, 10-point capacitive touch
    1. up to 10-point touch, depending on the operating system
    2. up to 6H hardness toughened glass panel
    3. Optical bonding, display well and dustproof

    Application Scenarios
    14inch 2K Capacitive Touch Display, application scenarios

    Interface Introduction

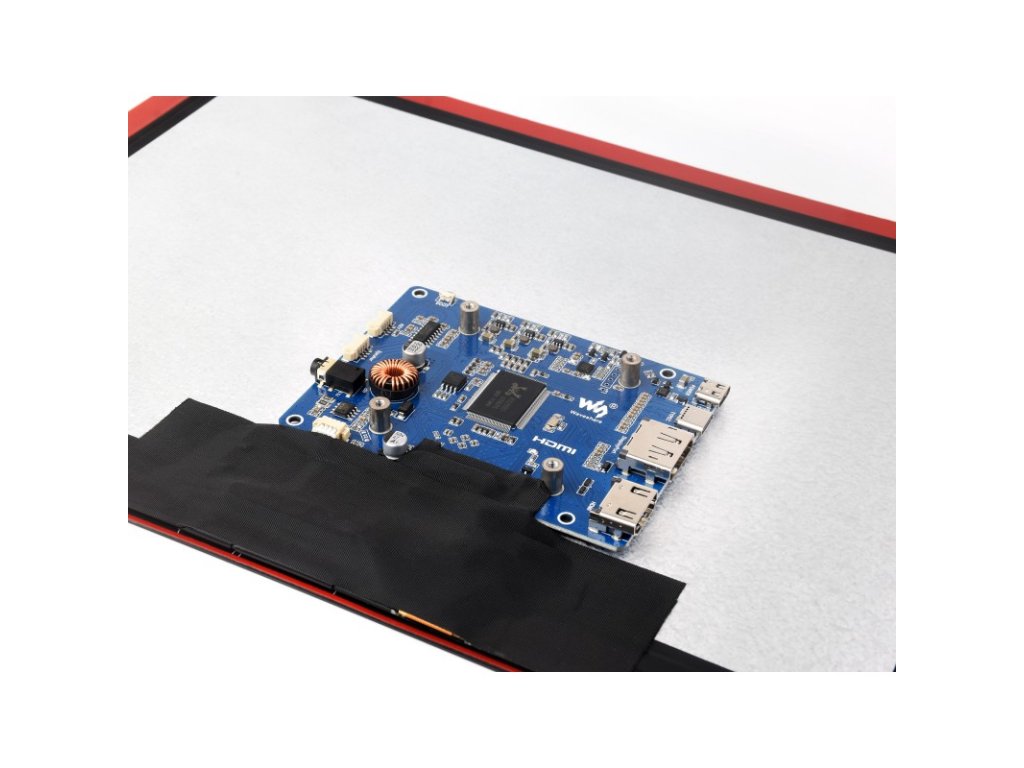

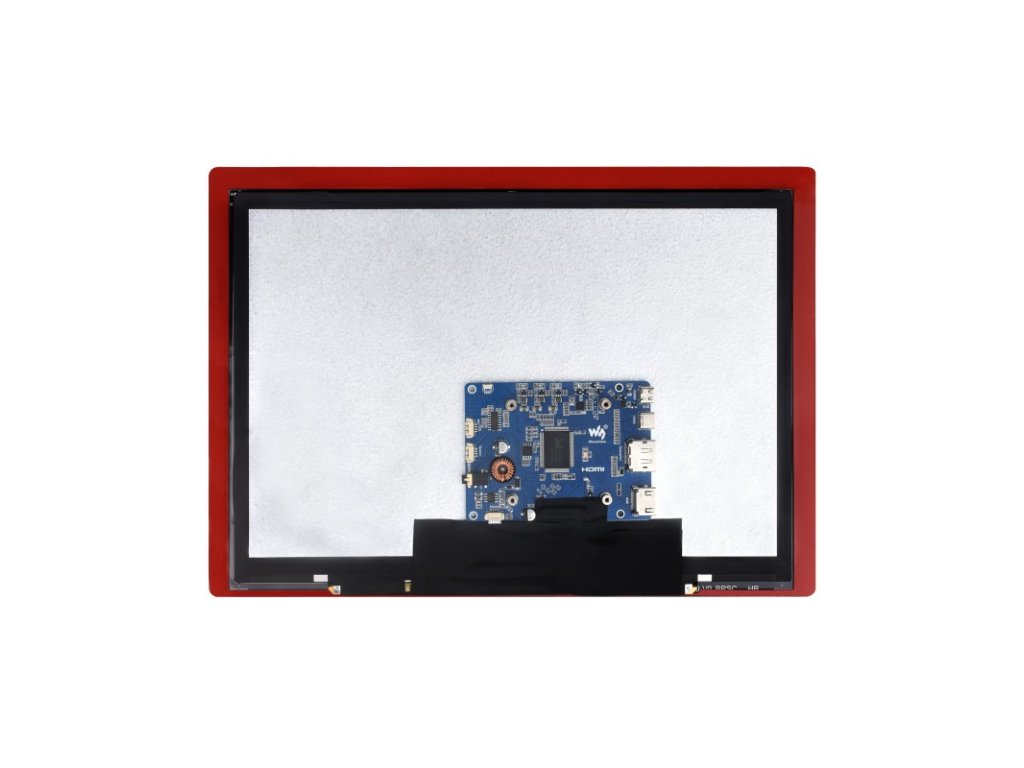

    14inch 2K Capacitive Touch Display, interface introduction
    Dimensions

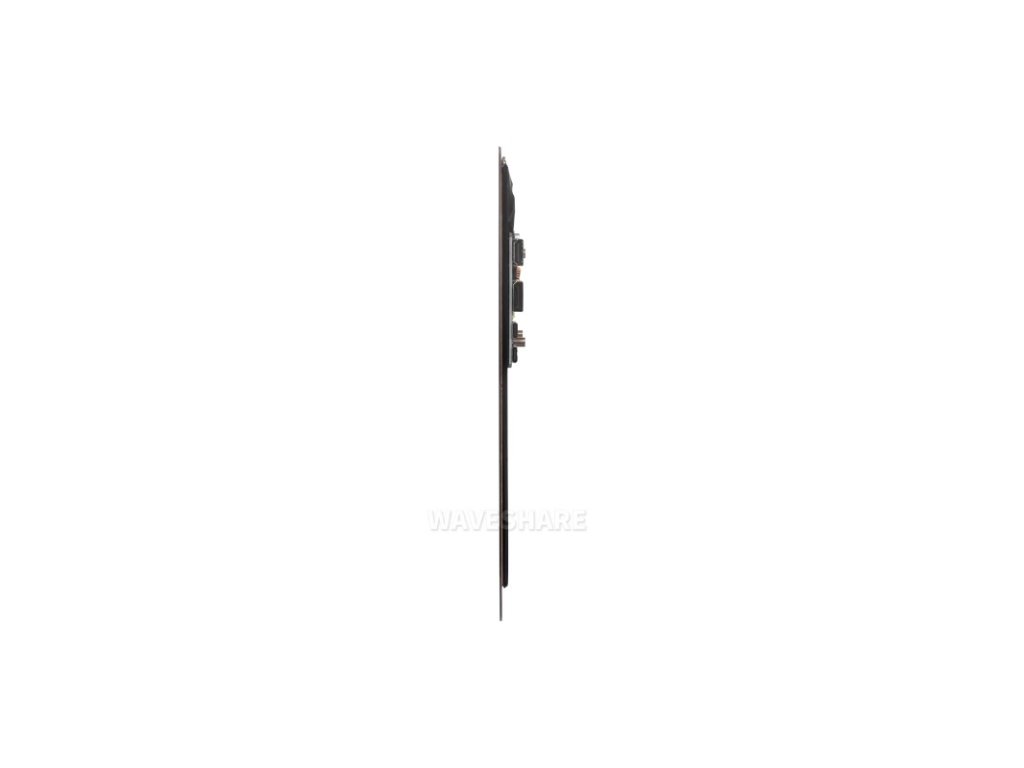

    14inch 2K Capacitive Touch Display, dimensions

    Support touch screen customization

    Support the following ways to customize the touch screen display in bulk order

    Over a decade
    Waveshare grows with display

    * Waveshare has been focusing on display design for over 10 years.

    Resources & Services
    Wiki: www.waveshare.com/wiki/14inch_2160x1440_LCD

    Package Content

    Weight: 1.482 kg

    1. 14inch 2160x1440 LCD x1
    2. HDMI cable ~1m x1
    3. HDMI to Micro HDMI adapter x1
    4. Type-C dual plug cable ~1m x1
    5. DP dual plug cable ~1m x1
    6. USB Type A to Type C cable ~1m x1
    7. Triangular stand x1
    8. Cleaning cloth x1
    9. OPTIONS 5V 3A Type-C power adapter x1
    10. Button board x1
    11. 1.27H 4PIN button board cable x1
    12. Capacitive touch pen x1
    14inch 2160x1440 LCD
