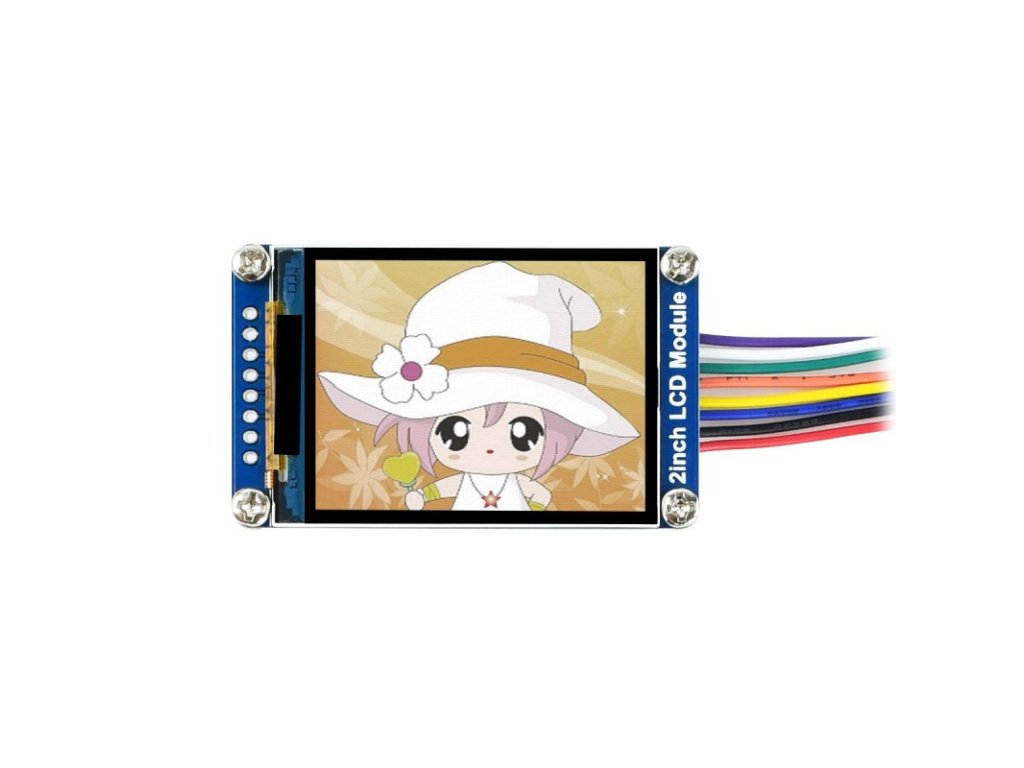

2inch LCD Display Module, IPS Screen, 240×320 Resolution, SPI Interface
2inch LCD Display Module, IPS Screen, 240×320 Resolution, SPI Interface
SKU: 17344
2inch LCD Display Module, IPS Screen, 240×320 Resolution, SPI Interface
2inch LCD Display Module, IPS Screen, 240×320 Resolution, SPI Interface
2inch LCD Display Module
Embedded ST7789VW Driver Chip, Using SPI Interface
Comes with examples for Raspberry Pi, VisionFive2, Arduino, STM32, etc.
- Size
2" - Resolution
240×320 - Display Color
262K - Interface
SPI - Driver
ST7789VW
Features At A Glance
- 240×320 resolution, 262K colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins
- Comes with online development resources (examples for Raspberry Pi/VisionFive2/Arduino/STM32)
Specifications
| OPERATING VOLTAGE | 3.3V / 5V | RESOLUTION | 240 × 320 pixels |
|---|---|---|---|
| COMMUNICATION INTERFACE | 4-wire SPI | DISPLAY SIZE | 30.60 × 40.80mm |
| DISPLAY PANEL | IPS | PIXEL SIZE | 0.0975 × 0.0975mm |
| DRIVER | ST7789VW | MODULE SIZE | 58.0 × 35.0mm |
Onboard SPI Control Interface
For Use With Controller Boards Like Raspberry Pi / VisionFive2 / Arduino / STM32
| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
Hardware Connection
Connecting With Raspberry Pi
Connecting With Arduino Board
Product Show
Outline Dimensions
PACKAGE CONTENT
Weight: 0.024 kg
- 2inch LCD Module x1
- PH2.0 20cm 8Pin x1
