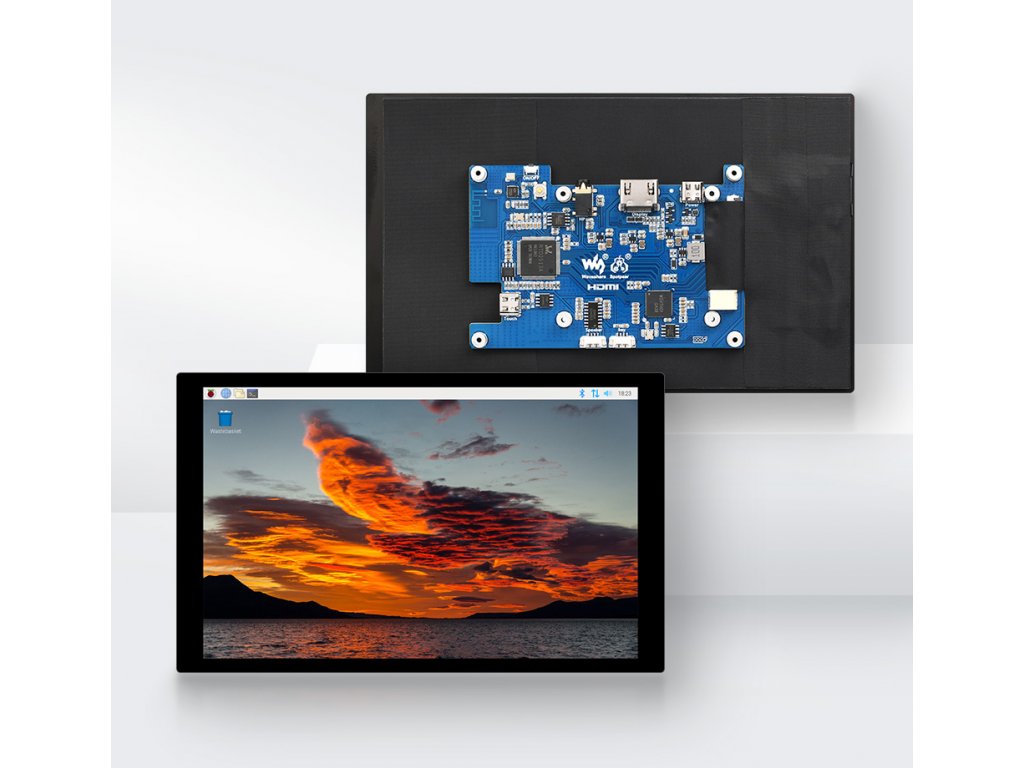

    8,0 palcový Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Int

    Neohodnotené
    Značka: Waveshare

    8 palcový Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface

    SKU: 23741

    Dostupnosť Zvyčajne do 3-7 pracovných dní
    Môžeme doručiť do:
    12.12.2025
    Možnosti doručenia
    Kód: 19873
    78,40 € / ks 63,74 € bez DPH
    8,0 palcový Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Int
    Neohodnotené
    Značka: Waveshare
    8,0 palcový Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Int
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 12:30
    Do 12:30 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov

    8 palcový Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface


    • Size      8″
    • Resolution1280×800
    • Display PortHDMI
    • Display PanelIPS
    • Viewing Angle178°
    • Touch TypeCapacitive
    • Touch Points10-Point
    • Touch PortUSB Type-C
    • Touch PanelToughened Glass
    • OSD MenuBrightness/Contrast
    • Audio Output13.5mm Jack
    • Audio Output24PIN Header
    • Touch Panel TechOptical Bonding


    Device & System Support



    Raspberry Pi
    Supports Raspberry Pi OS, 10-point touch, driver free
    Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
    Supports Retropie, driver free

    Supports all versions of Raspberry Pi

    Jetson Nano
    Supports Ubuntu, single point touch, driver free
    PC
    Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
    Connection Examples

    Working With Raspberry Pi 4B

    Working With Raspberry Pi 3B+

    Working With Raspberry Pi Zero 2W

    * additional mini HMDI adapter and USB cable are requied


    Working With Jetson Nano

    Working With Mini PC

    for reference only, the above controller boards or host are not included.


    IPS Display Panel

    Excellent Display Performance With 178° Wide Viewing Angle


    Capacitive 10-Point Touch
    1. up to 10-point touch, depending on the operating system
    2. up to 6H hardness toughened glass panel
    3. Optical Bonding, display well and dustproof


    Adjustable Brightness Via Software
    Interface Introduction
    Product Show

    Dimensions
    Resources & Services
    Wiki: www.waveshare.com/wiki/8DP-CAPLCD

    Weight: 0.406 kg

    1. 8DP-CAPLCD ×1
    2. HDMI flat cable ~1m ×1
    3. USB-A to USB-C cable ~1m ×1
    4. Button board ×1
    5. Button board cable ×1
    6. USB to Type-C adapter (B) ×1
    7. USB to Type-C adapter (C) ×1
    8. HDMI to Micro HDMI adapter ×1
    9. HDMI adapter ×1
    10. Screwspack ×1
