CAN bus Module (B) for Raspberry Pi Pico, enabling long range communication through SPI
CAN bus Module (B) for Raspberry Pi Pico, enabling long range communication through SPI
SKU: 23775
CAN bus Module (B) for Raspberry Pi Pico, enabling long range communication through SPI
CAN Bus Module (B) For Raspberry Pi Pico, Enabling Long Range Communication Through SPI
Features At A Glance
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- Features CAN function, adopts SPI interface CAN controller MCP2515 with transceiver SIT65HVD230DR
- Comes with online development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| OPERATING VOLTAGE | 3.3V~5V |
|---|---|
| CAN CONTROLLER | MCP2515 |
| CAN TRANSCEIVER | SIT65HVD230DR |
| COMMUNICATION BUS | SPI |
| BAUDRATE | 5K~1000Kbps |

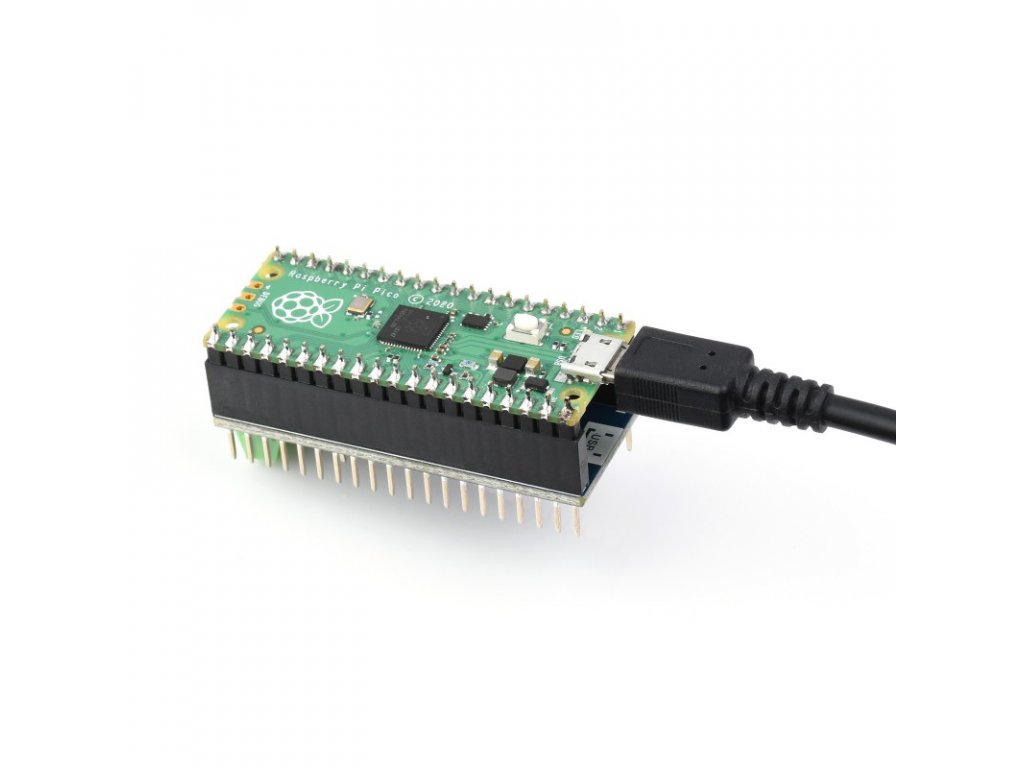

Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

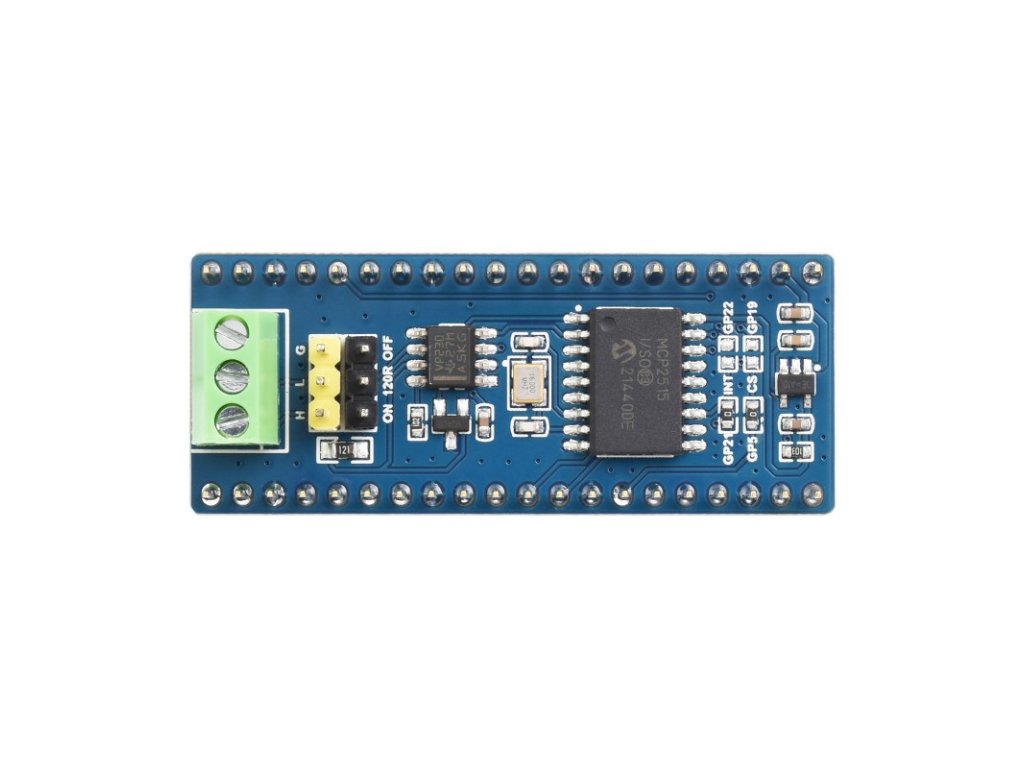

What's On Board
- RT9013-33GB
500mA low dropout, low noise, ultra-fast LDO - MCP2515
Second generation standalone CAN controller - SIT65HVD230DR
3.3V CAN transceiver
- Terminal resistor selection
ON: connected to 120R matching resistor
OFF: disconnected from 120R matching resistor - CAN bus terminal
Pinout Definition

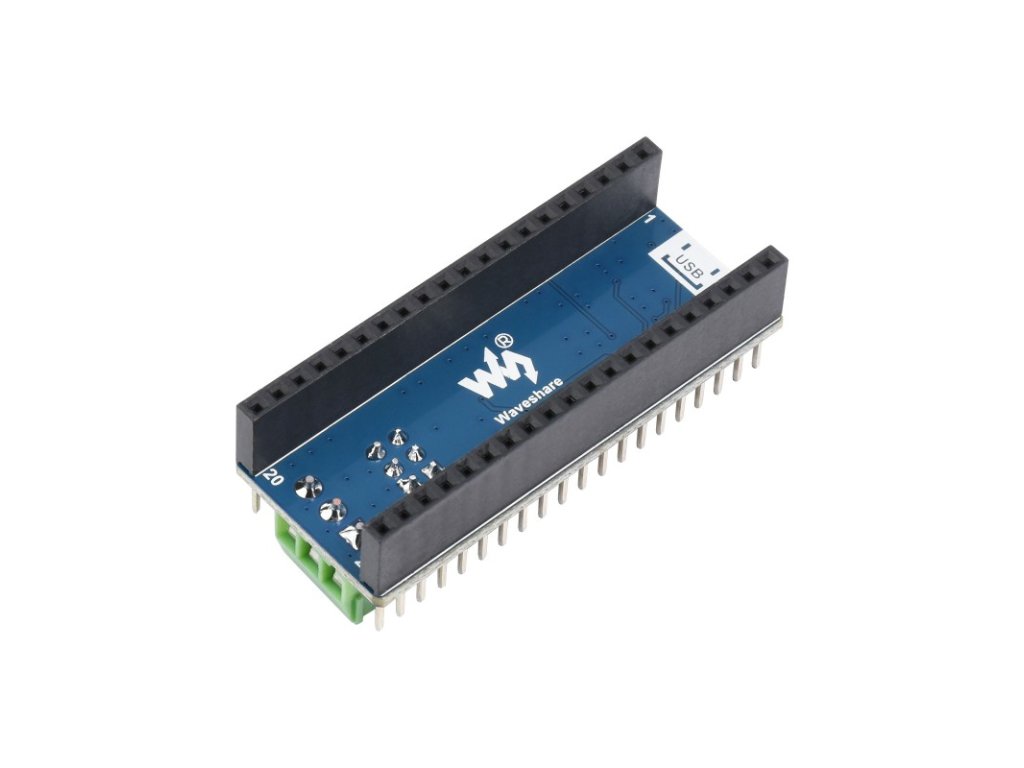

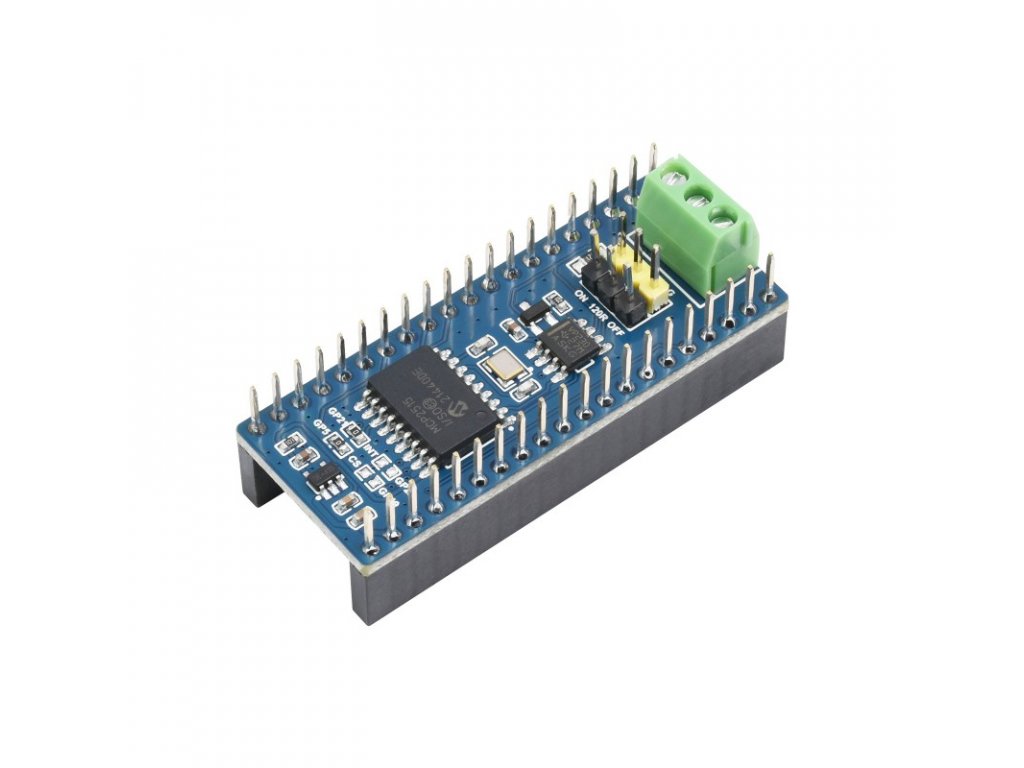

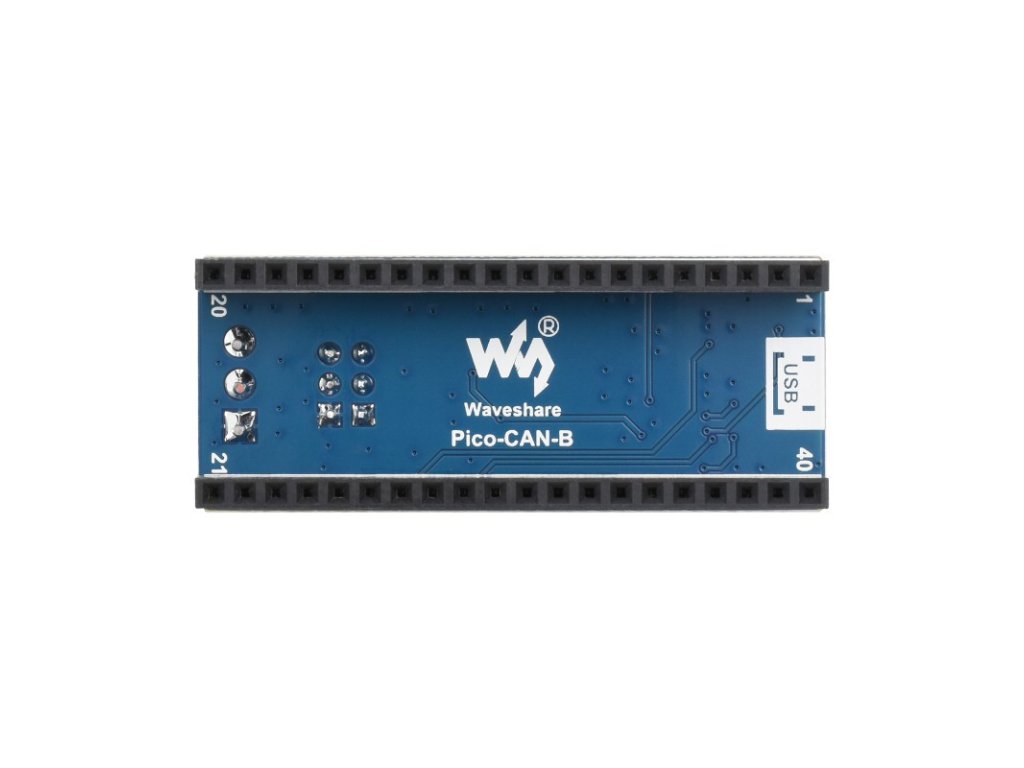

Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.011 kg
- Pico-CAN-B x1
