    ESP32-S3 1.47inch Display Development Board, 172×320, 262K Color, Up to 240MHz Frequency

    Neohodnotené
    Značka: Waveshare

    ESP32-S3 1.47inch Display Development Board, 172×320, 262K Color, Up to 240MHz Frequency, Supports WiFi & Bluetooth, With Colorful RGB LED, ESP32 With Display

    SKU: 28317

    Dostupnosť Skladom (9 ks)
    Môžeme doručiť do:
    3.8.2026
    Možnosti doručenia
    Kód: 24024
    14,45 € / ks 11,75 € bez DPH Jednotková cena:
    ESP32-S3 1.47inch Display Development Board, 172×320, 262K Color, Up to 240MHz Frequency
    Neohodnotené
    Značka: Waveshare
    esp32 s3 lcd 1 47 1
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 12:30
    Do 12:30 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov

    ESP32-S3 1.47inch Display Development Board, 172×320, 262K Color, Up to 240MHz Frequency, Supports WiFi & Bluetooth, With Colorful RGB LED, ESP32 With Display

    ESP32-S3 1.47inch Display Development Board, 172×320, 262K Color, Dual-core Processor Up to 240MHz Frequency, Supports WiFi & Bluetooth, With Colorful RGB LED, ESP32 With Display
    ESP32-S3-LCD-1.47

    Integrates LCD display, onboard TF card slot and multiple peripheral interfaces

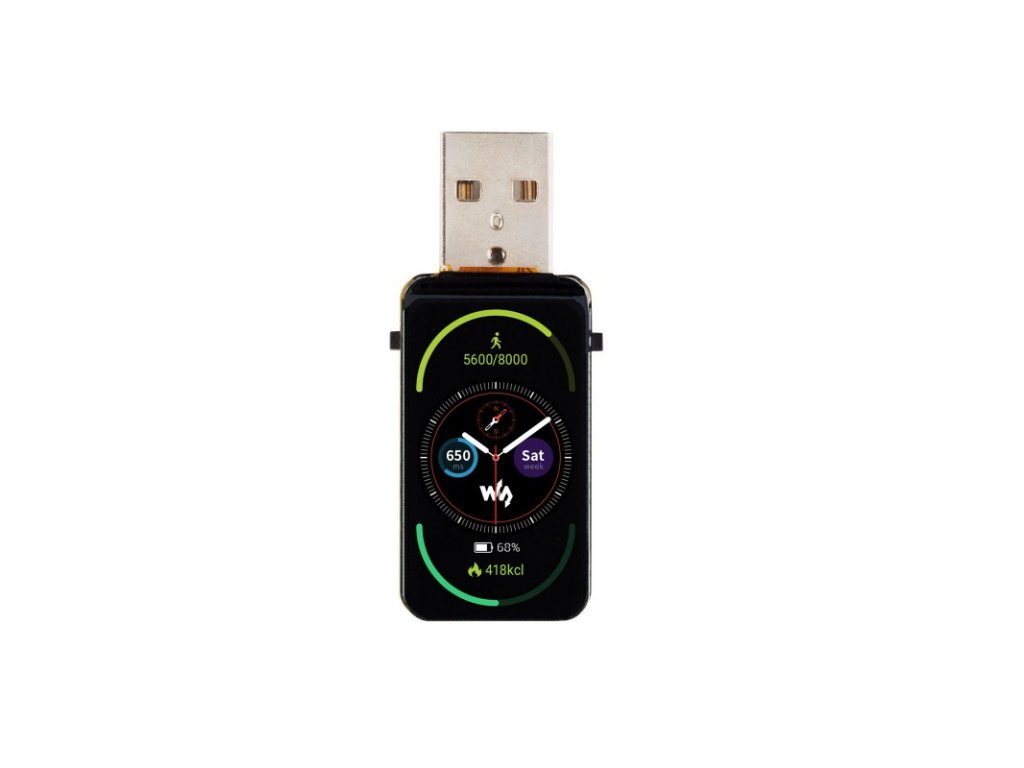

     ESP32-S3 LCD 1.47, front view and features

    * for reference only, please refer to the actual display effect

    Features

    ESP32-S3-LCD-1.47 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.47inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.

    • Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
    • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
    • Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
    • Onboard 1.47inch LCD display, 172×320 resolution, 262K color
    • Adapting multiple IO interfaces, integrates full-speed USB port
    • Onboard TF card slot for external TF card storage of pictures or files
    • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
    • Built-in RGB LED with clear acrylic sandwich panel for cool lighting effects

    Application Scenarios


    ESP32-S3 LCD 1.47, application scenarios

    * for reference only, please refer to the Package Content for detailed part list



    Supports multiple peripherals

    Supports the expansion of multiple peripherals via GPIO header

    ESP32-S3 LCD 1.47, supports multiple peripherals

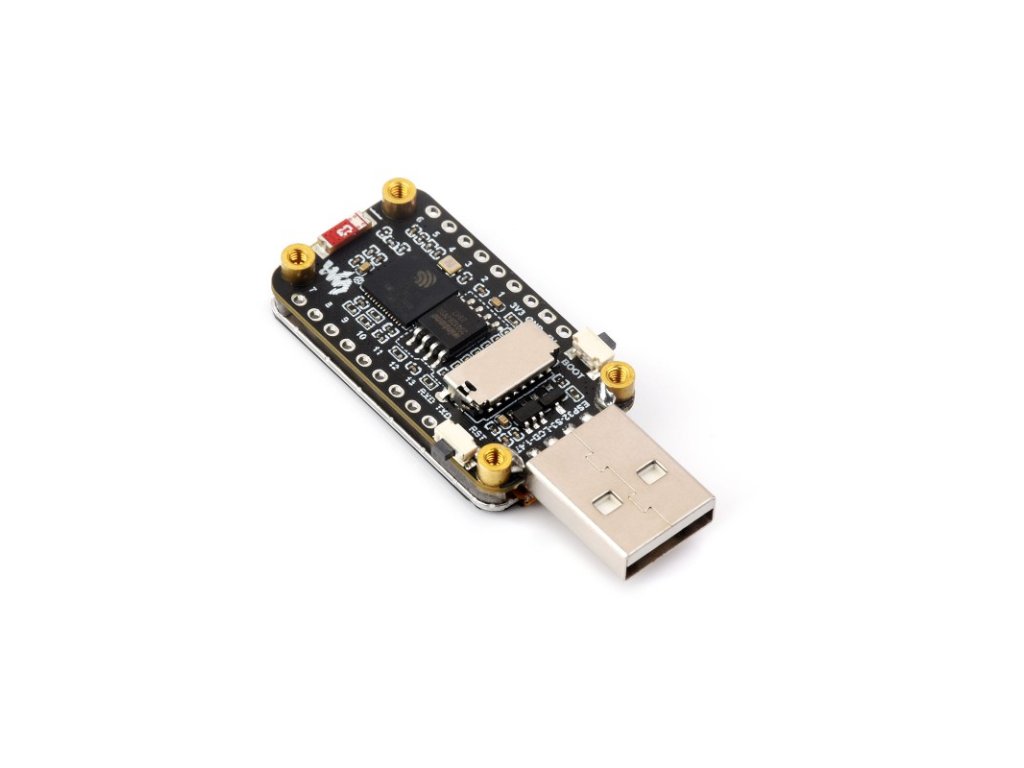

    What's On Board
    ESP32-S3 LCD 1.47, what's on board
    1. ESP32-S3R8
      dual-core processor, up to 240MHz operating frequency
    2. 16MB Flash
    3. TF card slot
    4. ME6217C33M5G
      Low dropout regulator, 800mA output (Max.)

    1. Onboard ceramic antenna
    2. RESET button
    3. BOOT button

    outline dimensions
    ESP32-S3 LCD 1.47, outline dimensions
    Resources & Services
    resources and services
    Wiki: www.waveshare.com/wiki/ESP32-S3-LCD-1.47

    Package Content

    Weight: 0.01 kg

    1. ESP32-S3-LCD-1.47 x1
    2. Black header ×1
    1ESP32-S3-LCD-1.47
    2
