    ESP32-S3 7inch Display Development Board, ESP32 With Display, 800×480, Without Touch Function

    Neohodnotené
    Značka: Waveshare

    ESP32-S3 7inch Display Development Board, ESP32 With Display, 800x480 , 32-bit LX7 Dual-core Processor , Up to 240MHZ Frequency , Supports WiFi and Bluetooth

    SKU:: 30406

    Version : Without Touch Function

    Dostupnosť Skladom (3 ks)
    Môžeme doručiť do:
    5.8.2026
    Možnosti doručenia
    Kód: 25458
    34,73 € / ks 28,24 € bez DPH Jednotková cena:
    ESP32-S3 7inch Display Development Board, ESP32 With Display, 800×480, Without Touch Function
    Neohodnotené
    Značka: Waveshare
    esp32 s3 lcd 7 1
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 12:30
    Do 12:30 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov
    ESP32-S3 7inch Display Development Board, ESP32 With Display, 800×480, Options For Touch Function, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna
    ESP32-S3 7″ LCD Development Board

    Integrates RGB interface LCD and 5-point capacitive touch (optional)

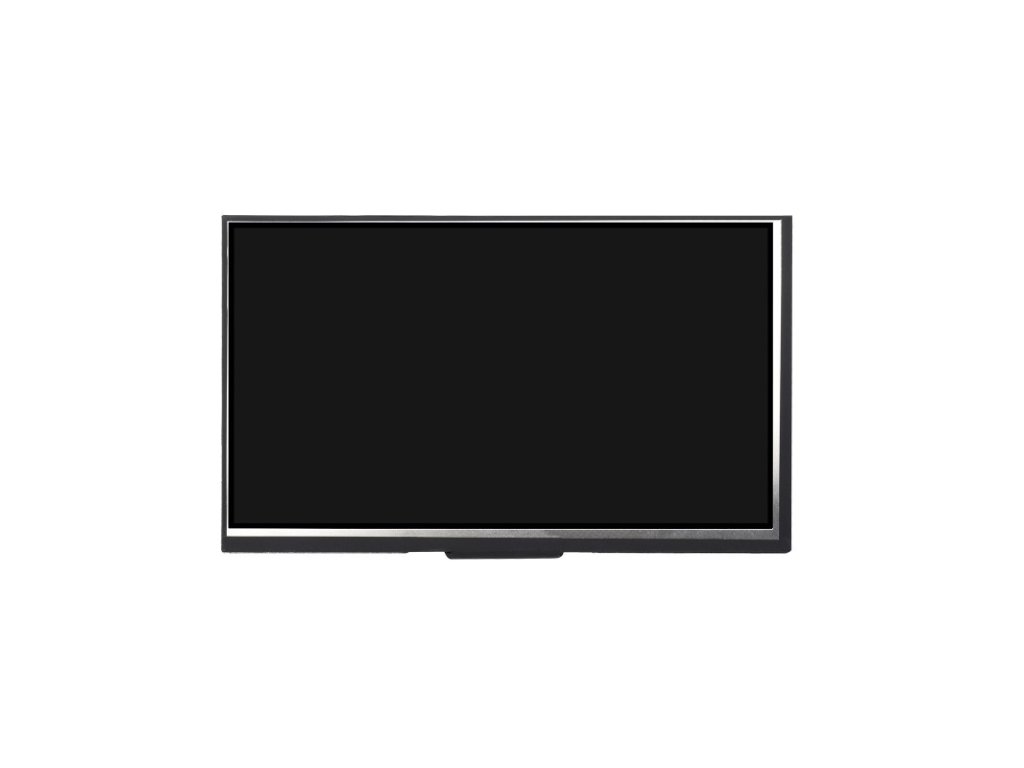

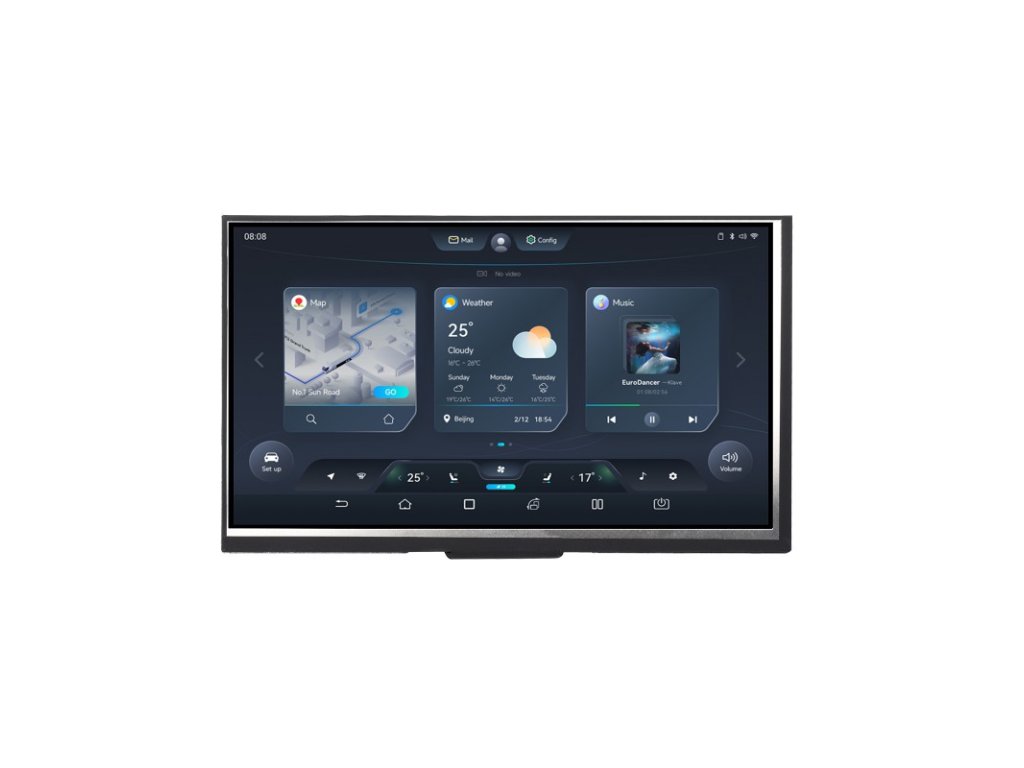

     ESP32-S3 7inch touch display development board, front view
    Version Options
    ESP32-S3-LCD-7

    ESP32-S3-LCD-7
    without touch control


    ESP32-S3-Touch-LCD-7

    ESP32-S3-Touch-LCD-7
    with touch control

    Features

    This product is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 7inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications

    • Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
    • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
    • Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash
    • Onboard 7inch LCD display, 800×480 resolution, 65K color
    • Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)
    • Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port
    • Supports flexible clock, module power supply independent setting, and other control to realize low power consumption in different scenarios


    Application Scenarios
    ESP32-S3 7inch touch display development board, application scenarios

    IPS Display Panel

    Excellent display performance, 170° viewing angle

    ESP32-S3 7inch touch display development board, IPS display panel
    Supports multiple peripherals

    Supports the expansion of multiple peripherals via Sensor, CAN, RS485, and I2C interfaces

    ESP32-S3 7inch touch display development board, onboard multiple interfaces

    Application Example

    ESP32-S3 7inch touch display development board, application example

    for reference only, please refer to the Package Content for the detailed part list


    What's On Board

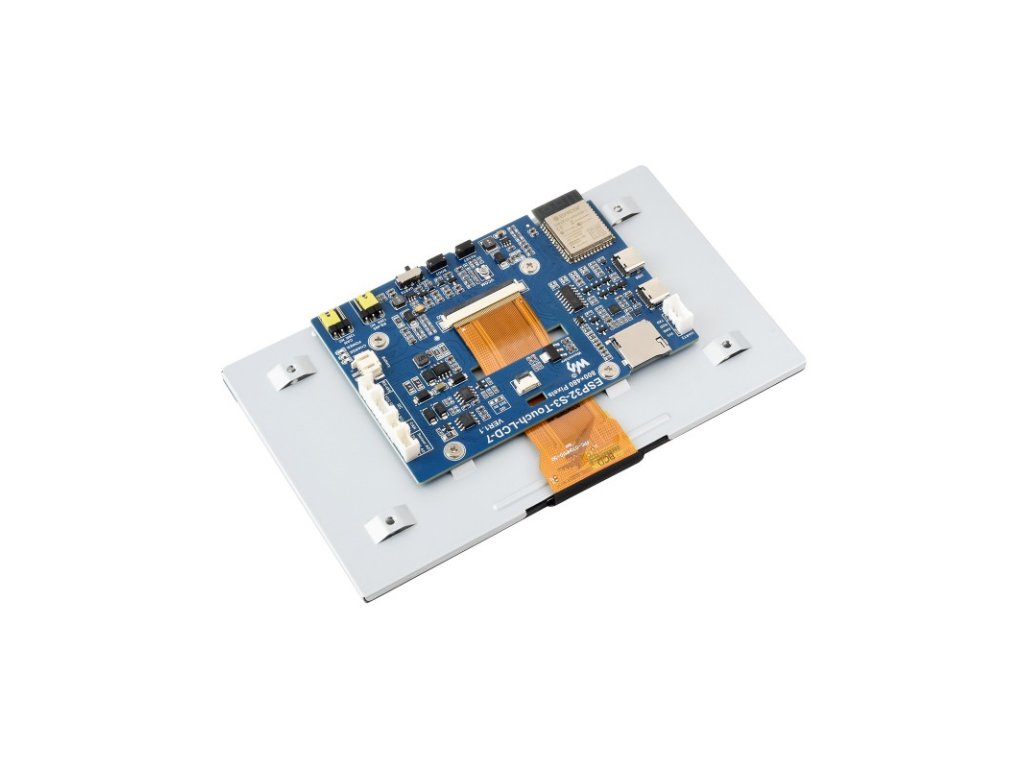

    ESP32-S3 7inch touch display development board, onboard components
    1. ESP32-S3N8R8
      The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and Flash
    2. 7inch display panel connector
    3. Touch panel connector
    4. TF card slot
    5. USB Type-C port
    6. UART1 Port
      USB TO UART Type-C port
    7. UART2 connector
      UART1 and UART2 are the same UART, selected by switch
    8. Sensor header
    9. CAN header
    10. I2C header
    11. RS485 header

    1. 3.7V single lithium battery PH2.0 header
    2. CAN terminal resistor selection
    3. RS485 terminal resistor selection
    4. UART selection
      select UART1 or UART2
    5. BOOT button
      Press and hold while powering on for program burning
    6. RESET button
    7. I2C level selection
      3.3V / 5V
    8. DONE
      Lithium battery charging completed indicator
    9. CHG
      Lithium battery charging indicator
    10. PWR
      Power supply indicator

    outline dimensions

    ESP32-S3-LCD-7

     ESP32-S3-LCD-7, outline dimensions


    ESP32-S3-Touch-LCD-7

     ESP32-S3-Touch-LCD-7, outline dimensions


    Development Board Size

     ESP32-S3 7inch touch display development board, outline dimensions

    Resources & Services
    Wiki: www.waveshare.com/wiki/ESP32-S3-Touch-LCD-7

    Balenie obsahuje :

    ESP32-S3-LCD-7

    1. ESP32-S3-LCD-7 x1
    2. HY2.0 2P to 2PIN male cable 10cm ×2
    3. HY2.0 3P to 3PIN male cable 10cm ×1
    4. HY2.0 4P to 4PIN male cable 10cm ×2
    5. Screws pack x1
    1ESP32-S3-LCD-7
    2
    3
    4
    5
