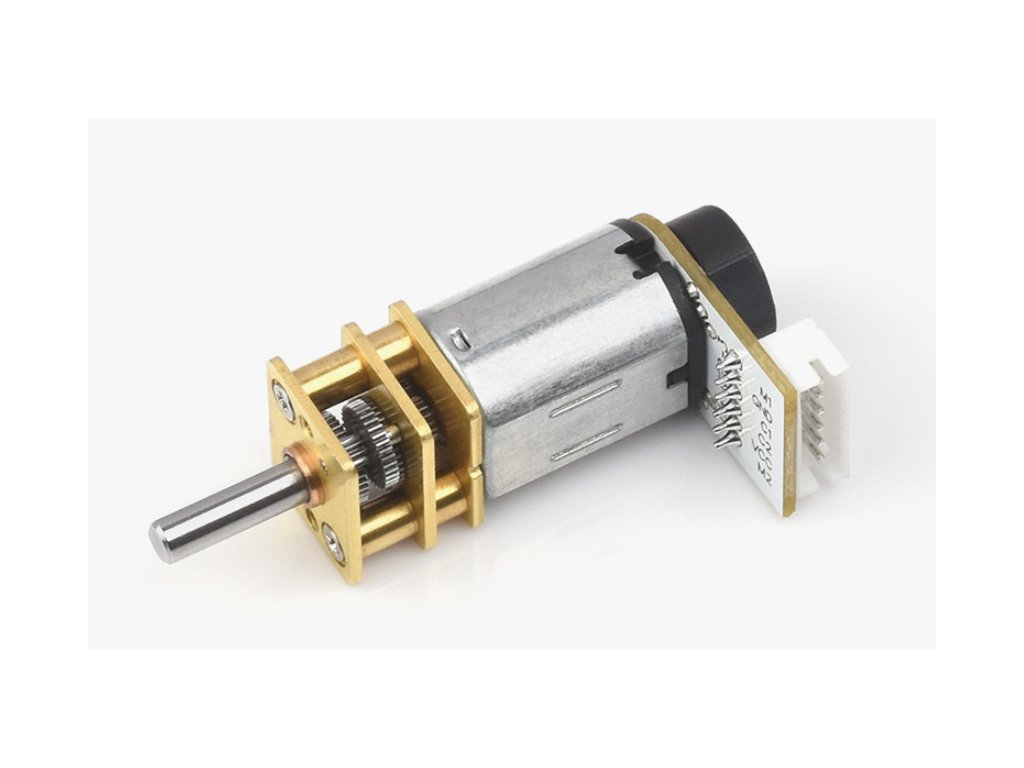

N20 DC Gear Motor, Magnetic Hall Encoder, All-metal Gearbox, High precision Reduction Motor
N20 DC Gear Motor, Magnetic Hall Encoder, All-metal Gearbox, High precision Reduction Motor, With L-shaped 6PIN Connector
SKU: 26377
N20 DC Gear Motor, Magnetic Hall Encoder, All-metal Gearbox, High precision Reduction Motor
N20 DC Gear Motor, Magnetic Hall Encoder, All-metal Gearbox, High precision Reduction Motor, With L-shaped 6PIN Connector
N20 DC Gear Motor, Magnetic Hall Encoder, All-Metal Gearbox, High Precision Reduction Motor, With L-Shaped 6PIN Connector
Specifications
| KEY PARAMETERS | |
|---|---|
| Rated Voltage | DC 12 V |
| No-load Speed | 200 rpm |
| No-load Startup Voltage | 3.0V MAX |
| Locked-rotor Torque | ≥1.2 kg.cm |
| No-load Current | 0.1 A MAX |
| Locked-rotor Current | ≤1.1 A |
| Hall Resolution | Basic 7 PPR × 150 = 1050 PPR |
| Gear Reduction Ratio | 1:150 |
| ENCODER SPECIFICATIONS | |
| Type | AB Dual-Phase Incremental Magnetic Hall Encoder |
| Line Rate | Basic pulse 7 PPR x Gear reduction ratio |
| Power Supply | DC 3.3V / DC 5.0V |
| Basic Function | with pull-up resistor, directly connect to MCU |
| Output Signal Type | Square wave AB phase |
| Response Frequency | 100 KHz |
| Basic Pulses | 7 PPR |
| Magnetic Ring Trigger Poles Number | 14 poles (7 pairs of poles) |
Application Scenarios
Suitable For Application Scenarios Such As Intelligent Robots, Smart Homes, Etc.
Outline Dimensions
PACKAGE CONTENT
Weight: 0.018 kg
DCGM-N20-12V-EN-200RPM x1
