NEO-M8T GNSS TIMING HAT For Raspberry Pi, Multi-Constellation Receiver Support, Single-Satellite Timing Feature
NEO-M8T GNSS TIMING HAT

GNSS Module Based On NEO-M8T For Raspberry Pi, Single-Satellite Timing Feature

Accurate & Fast Positioning With Minor Drifting, Low Power Consumption, Outstanding Ability For Anti-Spoofing & Anti-Jamming

This is a Raspberry Pi GNSS HAT based on NEO-M8T with multi-constellation receiver support, as well as precise single-satellite timing feature. It supports concurrent reception of up to 3 GNSS (GPS, Beidou, Galileo, GLONASS) and augment systems like SBAS, QZSS, IMES, and D-GPS. It features accurate & fast positioning with minor drifting, low power consumption, outstanding ability for anti-spoofing & anti-jamming, and so on.

By simply attaching it onto the Pi, it is fairly easy to enable GNSS capability for your Raspberry Pi.

Features At A Glance
  • Precise timing feature, high availability even with one single satellite
  • High dynamic range radios with both analog and digital interference mitigation, supporting applications in wireless communications equipment
  • Multi-constellation receiver support, concurrent reception of up to 3 types of GNSS satellite systems from GPS, Beidou, Galileo, and GLONASS, and still retains low power consumption
  • Augment systems support, including SBAS, QZSS, IMES, D-GPS, improving the positioning performance of service location
  • A-GNSS (Assisted GNSS) support, reducing the first positioning time when powered up, improving the acquisition sensitivity
  • Features -167dBm navigating sensitivity and outstanding ability for anti-spoofing & anti-jamming, supports geo-fencing
  • Supports U-Center, an easy way to config the module
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Breakouts the module's UART and I2C interface, for connecting with host boards like Arduino/STM32
  • Baudrate range: 4800~921600bps (9600bps by default)
  • Supports DDC (I2C compliant) interface: up to 400KHz (max)
  • Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
  • 4x LEDs for indicating the module operating status
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
GNSS SPECIFICATIONS
NEO-M8TGPS & GLONASSGPSGLONASSBeiDouGalileo
Frequency band72-channel u-blox M8 engine
GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, BeiDou B1, Galileo E1B/C
Horizontal positioning accuracyAutonomous2.5m CEP2.5m CEP4.0m CEP3.0m CEP-
SBAS2.0m CEP2.0m CEP---
Max navigation update rate4Hz10Hz10Hz10Hz10Hz
Time-To-First-FixCold starts25s29s30s34s45s
Hot starts1s1s1s1s1s
Aided starts2s2s2s3s7s
SensitivityTracking and navigating-167 dBm-166 dBm-166 dBm-159 dBm-159 dBm
Aided acquisition-157 dBm-157 dBm-151 dBm-146 dBm-142 dBm
Re-acquisition-160 dBm-160 dBm-156 dBm-156 dBm-153 dBm
Cold starts-148 dBm-148 dBm-145 dBm-143 dBm-138 dBm
Hot starts-160 dBm-160 dBm-156 dBm-155 dBm-151 dBm
Velocity accuracy0.05 m/s0.05 m/s0.1 m/s0.1 m/s0.1 m/s
Heading accuracy0.3 degree0.3 degree0.4 degree0.5 degree0.5 degree
PPS accuracyClear sky≤20ns
Indoor≤500ns
Jitter±11ns
PPS frequency0.25Hz…10MHz (configurable)
Operational limitsAcceleration (max): 4g
Altitude (max): 50000m
Velocity (max): 500m/s
OTHER SPECIFICATIONS
Communication interfaceUSB, UART (4800~921600bps, 9600bps by default), I2C (max 400KHz)
Update rate1Hz (default), 10Hz (max)
ProtocolNMEA 0183 Version 4.0 (V2.3 or V4.1 selectable), UBX, RTCM 2.3
Power supply5V
Overall current<45mA@5V (Continue mode)
Module current32mA@3V (Continue mode)
Operating temperature-40℃ ~ 85℃
Dimensions65mm × 30.5mm
Standard Raspberry Pi 40PIN GPIO

Compatible With Raspberry Pi Series Boards, Jetson Nano

Single-Satellite Timing & Synchronization

High Integrity, Precise Timing Feature, High Availability Even With One Single Satellite

Cost Effective, High Precision, Easy Implement

Multi-Constellation Receiver Support

Concurrent Reception Of Up To 3 Types Of GNSS Satellite Systems, And Still Retains Low Power Consumption

Supports GPS, Beidou, Galileo, And GLONASS

Augment Systems Support

Augment System Is Aimed At Improving The Accuracy, Integrity, Reliability, And Availability Of Positioning And Navigation

Supports Augment Systems Including SBAS, QZSS, IMES, D-GPS

Geo-Fencing Support

Features -167dBm Navigating Sensitivity, Outstanding Ability For Anti-Spoofing & Anti-Jamming

Software U-Center Support

An Easy Way To Config The Module

Applications

Ideal For Fleet Management, Asset Tracking, Financial Transaction, Smart Electricity Grids, Security Systems, Industrial PDA, GIS App, Etc.

What's On Board

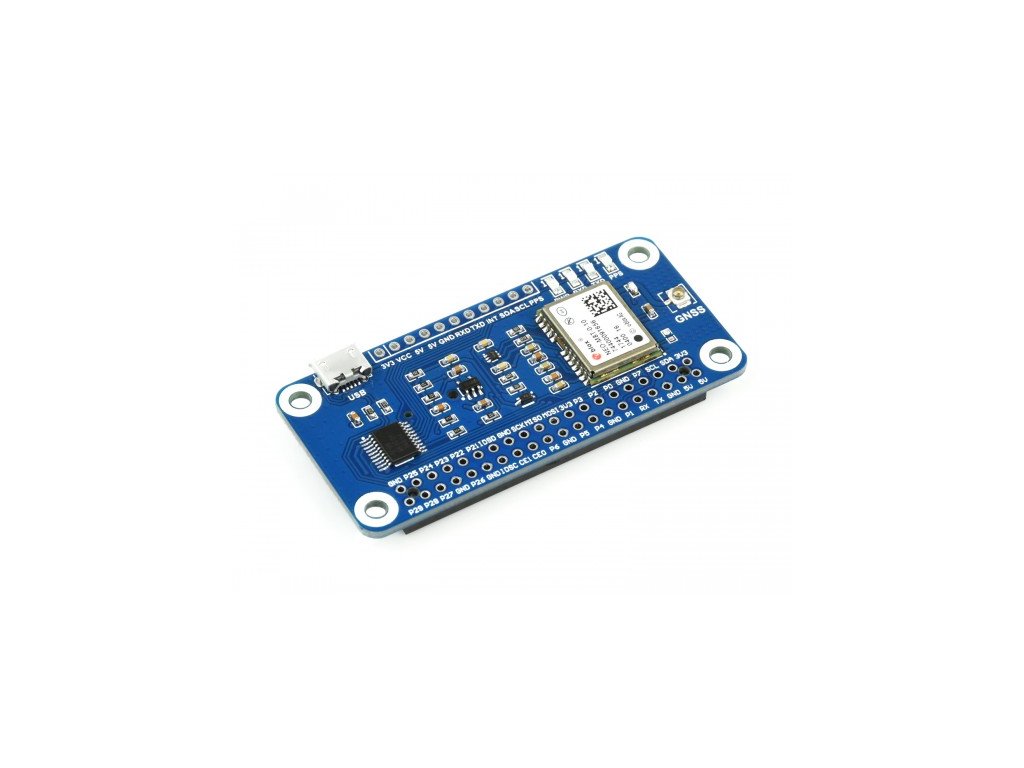

  1. NEO-M8T module
  2. RT9193-33 power chip
  3. TXS0108EPWR voltage translator
  4. Status indicators
    RXD/TXD: UART TX/RX indicator
    PPS: GPS status indicator
    PWR: power indicator
  5. Battery holder
    supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts

  1. Raspberry Pi GPIO header
    for connecting with Raspberry Pi
  2. USB port
  3. UART, I2C interface
    for connecting with other MCUs
  4. GNSS antenna connector
Pinout Definition
Outline Dimensions
PACKAGE CONTENT

Weight: 0.131 kg

  1. NEO-M8T GNSS TIMING HAT x1
  2. GPS External Antenna (B) x1
  3. USB-A to Micro-B cable x1
  4. RPi screws pack (2pcs) x1
  5. 2x20PIN female header x1
