PL2303 USB To UART (TTL) Communication Module V2, USB-A Connector

Neohodnotené

Značka: Waveshare

SKU: 20265

4,80 € / ks 3,90 € bez DPH

PL2303 USB To UART (TTL) Communication Module V2, USB-A Connector

Neohodnotené

Značka: Waveshare

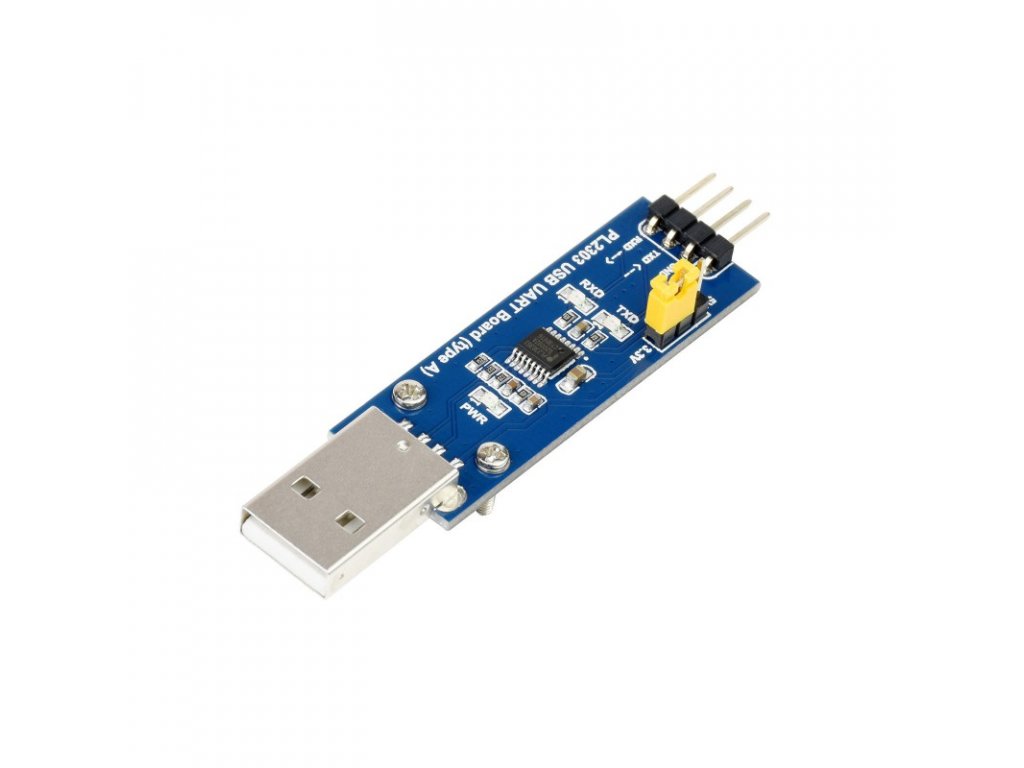

PL2303 USB To UART (TTL) Communication Module V2, USB-A Connector

PL2303 USB To UART (TTL) Communication Module, Micro / Mini / Type A / Type C Connector

PL2303 USB To UART (TTL)
Communication Module

Stable Transmission | Multi-Device Applicable | Windows Compatible

Features At A Glance

Adopts PL2303GS new version chip
Supports windows XP/7/8/10/11/...
3x VCCIO power mode via jumper setting:
- VCCIO - 5V: 5V output
- VCCIO - 3.3V: 3.3V output
- open the jumper: powered from target board (1.8V/2.5V/3.3V/5V)
3x LED indicators: TXD, RXD, PWR

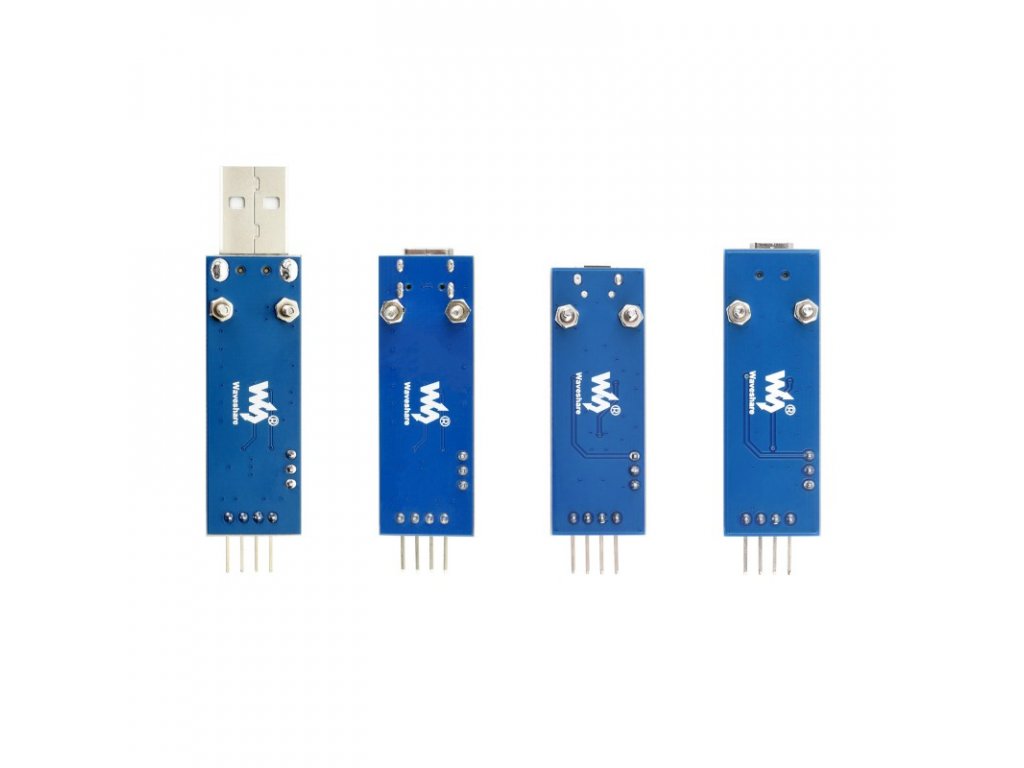

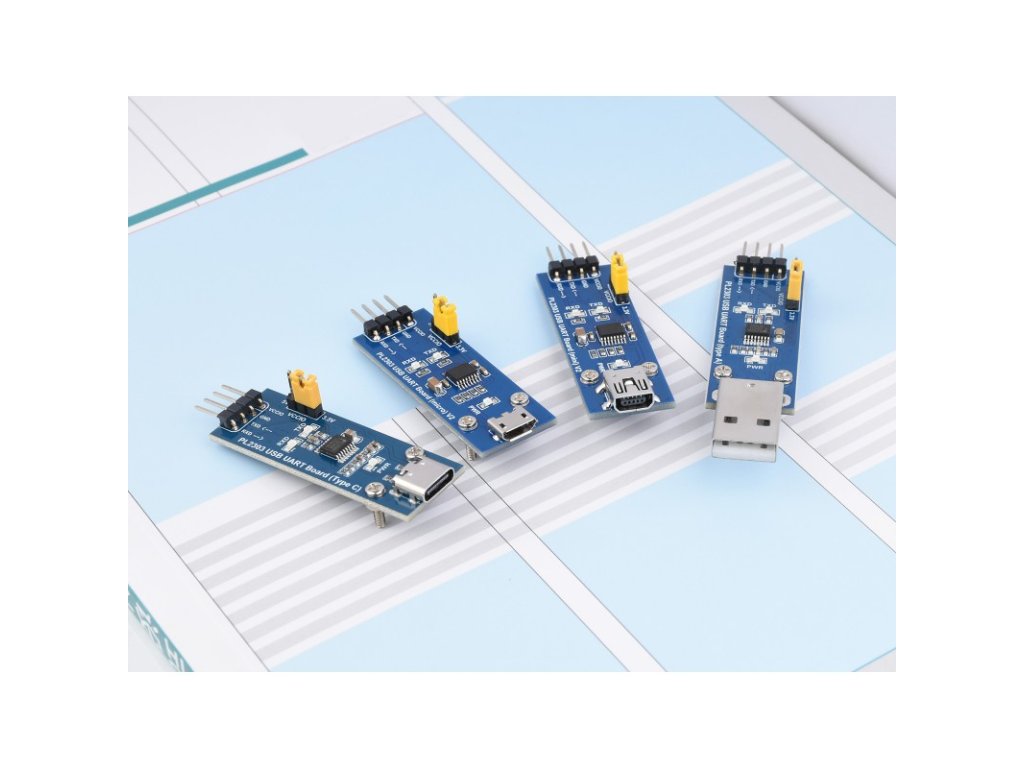

Version Options

USB Type A Connector

USB Type C Connector

USB micro Connector

USB mini Connector

PL2303 Solution

Adopts PL2303GS New Version Chip

Hardware Connection

In The Case Of PL2303 USB UART Board (Type A) Working With MCU

VCCIO ↔ 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
GND ↔ GND
TXD ↔ MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX)
RXD ↔ MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX)

CAUTION: the module is compatible with TTL level ONLY, to avoiding any damage, please DON'T direct connect it to RS232 circuit.

Product Show
