Raspberry Pi High Quality Camera M12, 12.3MP IMX477R Sensor, High Sensitivity, Supports M12 mount

Neohodnotené
Značka: Waveshare

Raspberry Pi High Quality Camera M12, 12.3MP IMX477R Sensor, High Sensitivity, Supports M12 mount Lenses

SKU: 23945

Dostupnosť Zvyčajne do 3-7 pracovných dní
Môžeme doručiť do:
21.5.2025
Možnosti doručenia
Kód: 23126
64,99 € / ks 52,84 € bez DPH
Raspberry Pi High Quality Camera M12, 12.3MP IMX477R Sensor, High Sensitivity, Supports M12 mount
Neohodnotené
Značka: Waveshare
Raspberry Pi High Quality Camera M12, 12.3MP IMX477R Sensor, High Sensitivity, Supports M12 mount
Loading...
14 dní na vrátenie
14 dní
na vrátenie tovaru
Objednávka do 12:30
Do 12:30 objednané
ešte dnes odoslané
Vernostné zľavy 5%
Vernostné zľavy 5%
pre registrovaných zákazníkov
Raspberry Pi High Quality Camera M12, 12.3MP IMX477R Sensor, High Sensitivity, Supports M12 Mount Lenses, Compatible With Raspberry Pi Series Boards
Raspberry Pi High Quality Camera M12

M12 mount | Compatible with Raspberry Pi series boards


Features At A Glance

The Raspberry Pi HQ Camera M12 is the M12 mount version of the Raspberry Pi High Quality Camera, adopts the IMX477R sensor, compact in size, and provides 12.3MP high resolution and excellent low-light performance.

Features an M12 mount and requires a M12 lens to work, for integration into industrial and commercial applications which require a higher level of visual fidelity. The Raspberry Pi HQ Camera M12 is compatible with all Raspberry Pi series boards.


Specifications
SENSOR IMX477R
12.3MP, 4056 (H) × 3040 (V)
7.9mm CMOS diagonal size
1.55µm (H) × 1.55µm (V) pixel size
OUTPUT RAW12 / 10 / 8, COMP8
BACK FOCUS Adjustable
LENS SUPPORT M12
IR CUT FILTER Integrated
TRIPOD MOUNT 1/4″-20

M12 Lens Selection
MODEL FIELD OF VIEW FOCAL LENGTH APERTURE DISTORTION LENS MATERIAL BACK FOCAL LENGTH RESOLUTION
WS1842714 184.6° 2.72mm 2.5 <-21% 8G+IR 3.06mm 14MP
WS1132712 113° 2.7mm 2.8 <-1.5% 5G2P+IR 4.97mm 12MP
WS1053516 105° 3.56mm 2.5 <-16.5% 4G3P+IR 5.92mm 16MP
WS1603212 136° 3.2mm 2.0 <-64% 8G+IR 6.08mm 12MP
WS0698012 69° 8mm 1.8 <-15.68% 8G+IR 6.8mm 12MP

Higher Resolution, Better Imaging Effect

Compared To 8MP Of Normal Raspberry Camera, The High Quality Camera Offers Up To 12.3MP, Along With Nearly 50% Greater Area Per Pixel, Delivering Better Imaging Effect

Higher resolution support



Large pixels for clearer imaging


Using With Different Lens

Working With Raspberry Pi

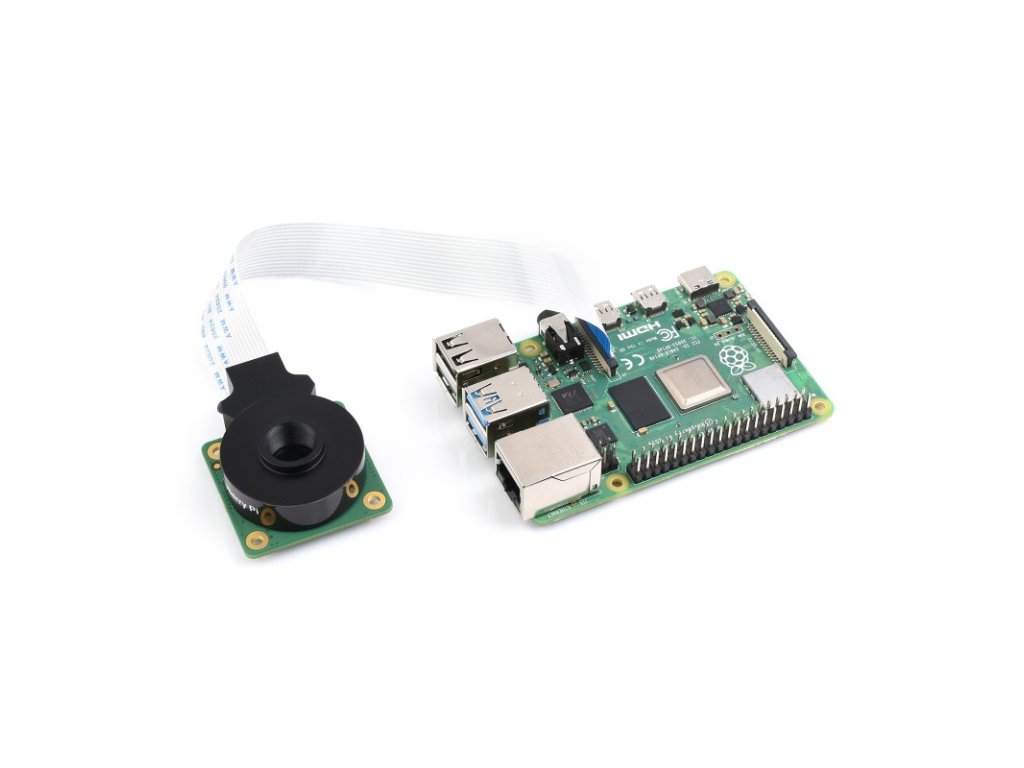

Connecting with Raspberry Pi 4B




Connecting with Raspberry Pi 5

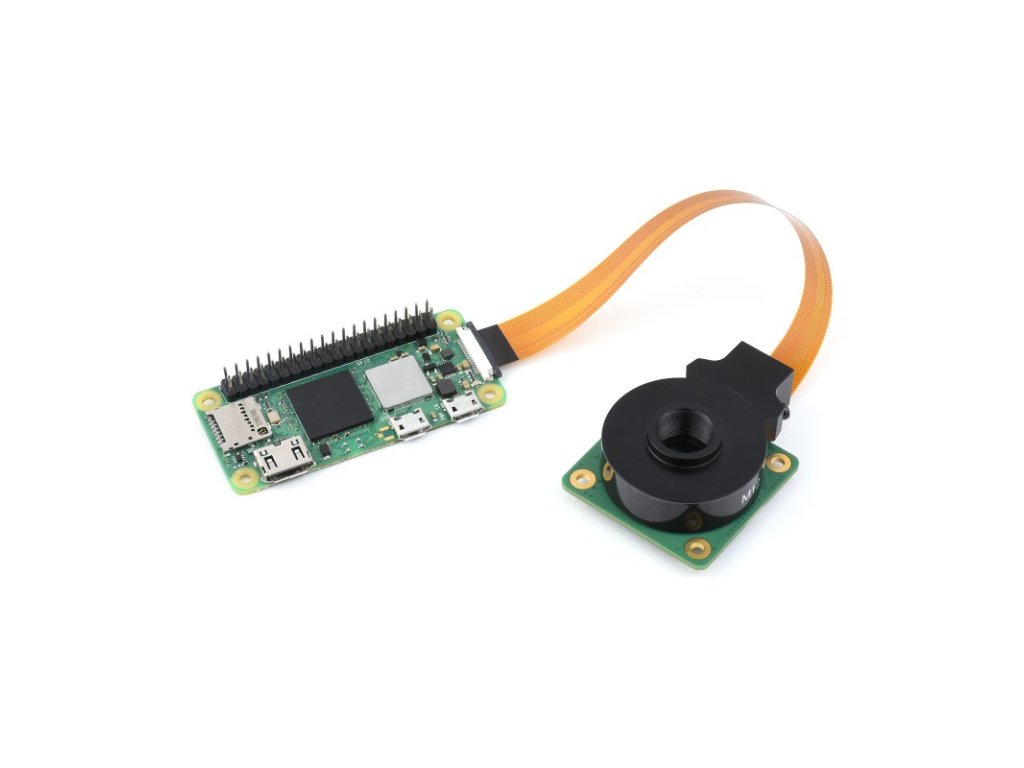

Connecting with Raspberry Zero 2 W


* for reference only, Raspberry Pi 4B, Raspberry Pi 5, Zero 2 W, M12 Lens, black FPC and yellow FPC are NOT included.

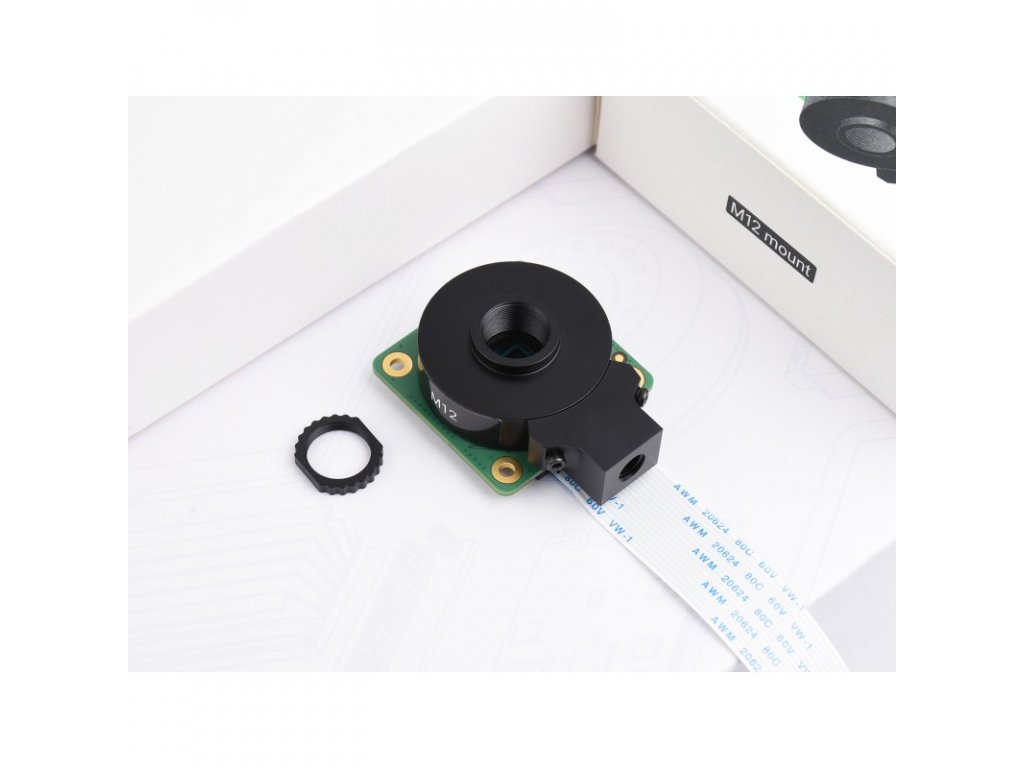

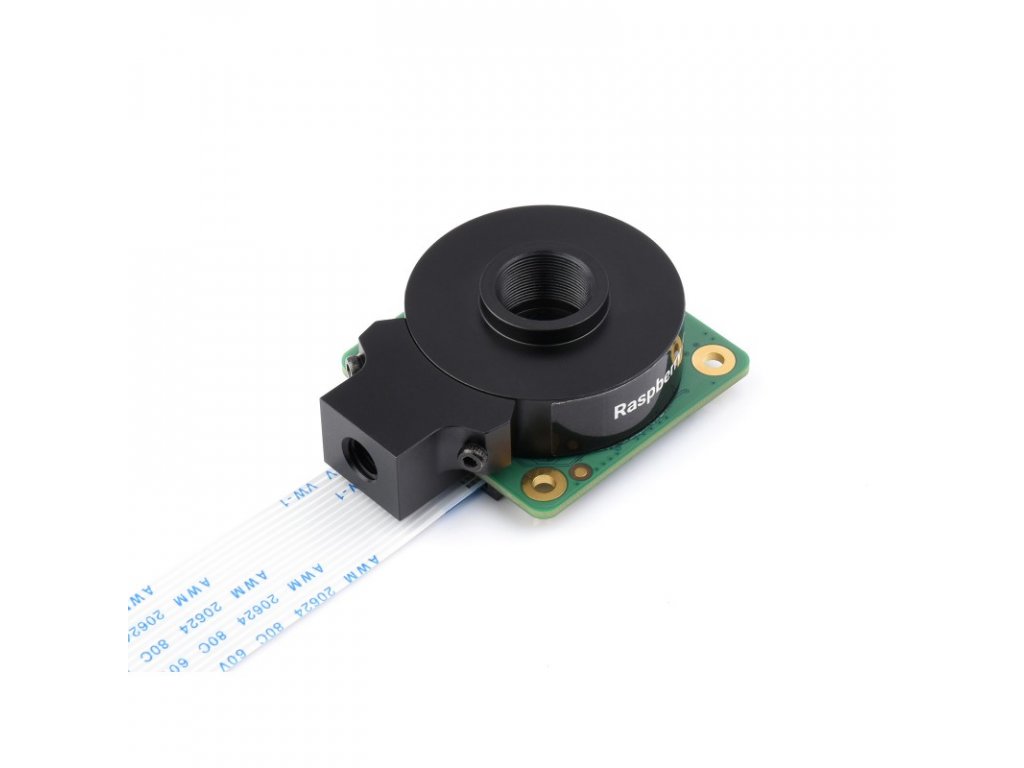

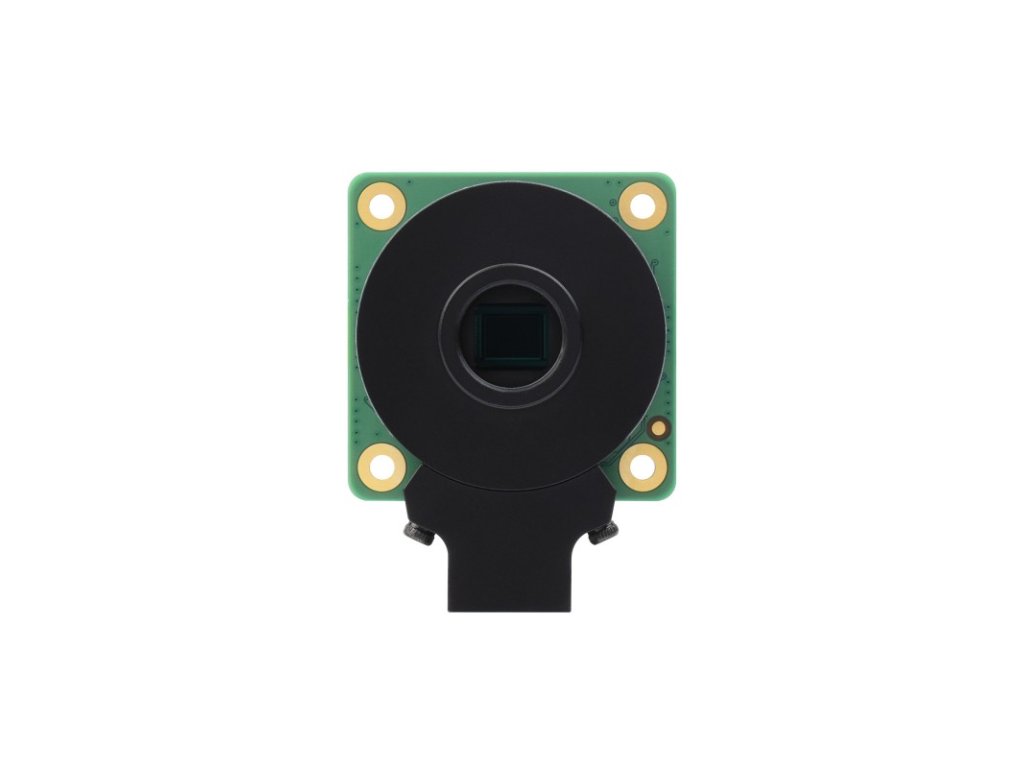

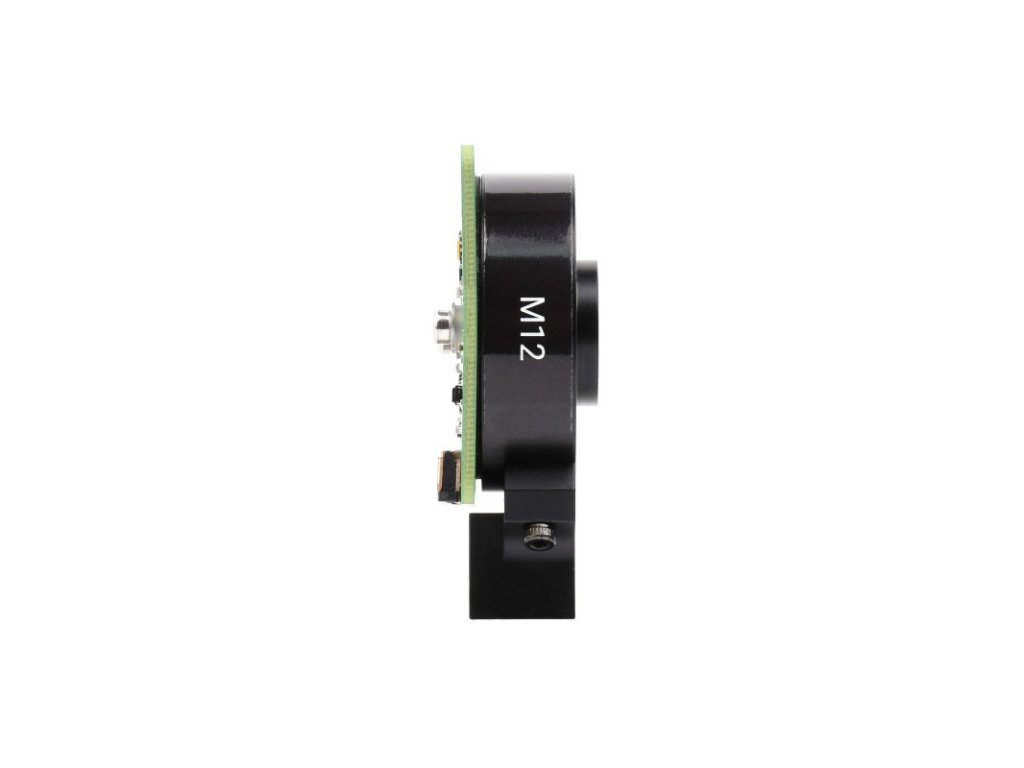

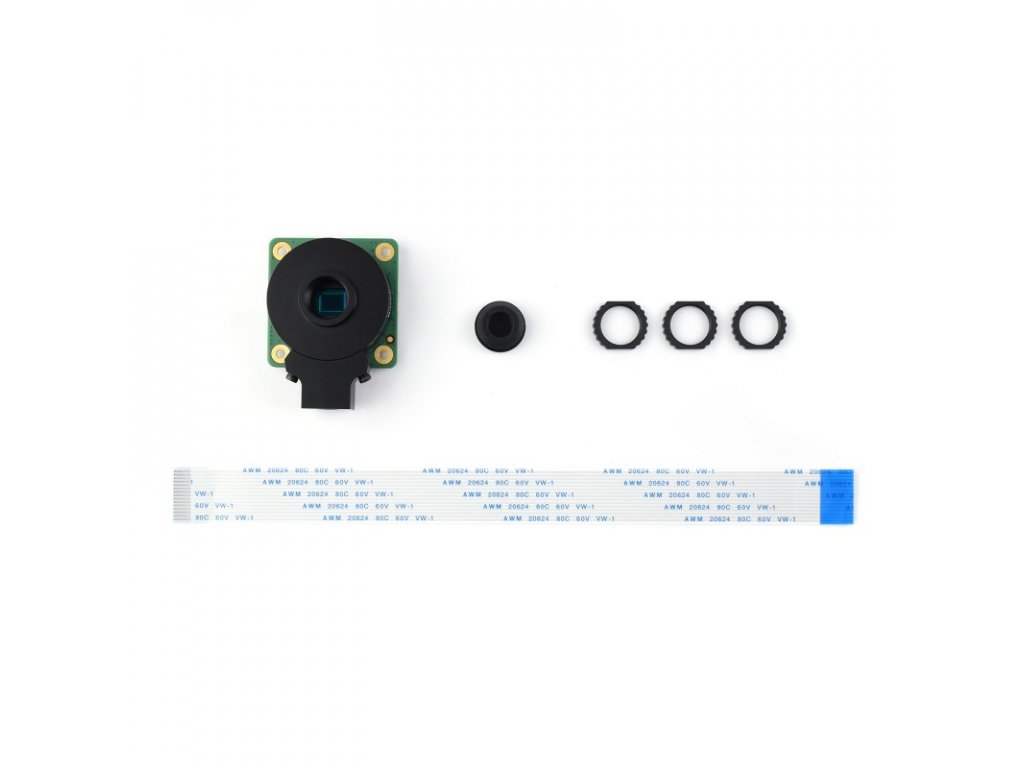

Product Show



Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/Raspberry_Pi_HQ_Camera

Dodatočné parametre

Kategória: Kamery
EAN: 5056561803227
