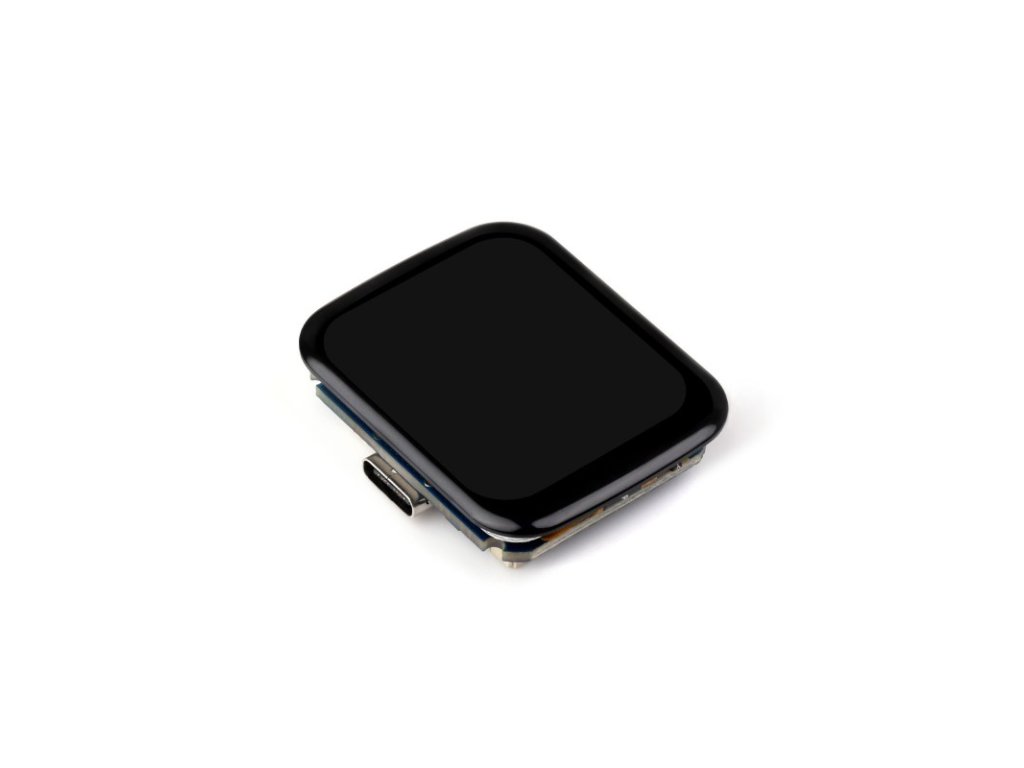

RP2040 Microcontroller Development Board, With 1.69inch Touch LCD, Rounded Corners, Dual-core Arm processor, 16MB Flash, Accelerometer And Gyroscope Sensor

RP2040-Touch-LCD-1.69

Based on Raspberry Pi RP2040

Features

RP2040-Touch-LCD-1.69 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.69inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, buzzer, and so on, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 16MB of onboard Flash memory
Type-C connector, keeps it up to date, easier to use
Onboard 1.69inch capacitive touch display, 240×280 resolution, 65K color
Lithium battery recharge/discharge header, suitable for mobile devices
Onboard RTC chip and RTC battery header for timing and scheduling functions
Onboard buzzer for sound-producing peripheral
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
Accurate clock and timer on-chip
Temperature sensor

Small size, touch more possibilities

Suitable for various smart devices development, can realize human-computer interaction function

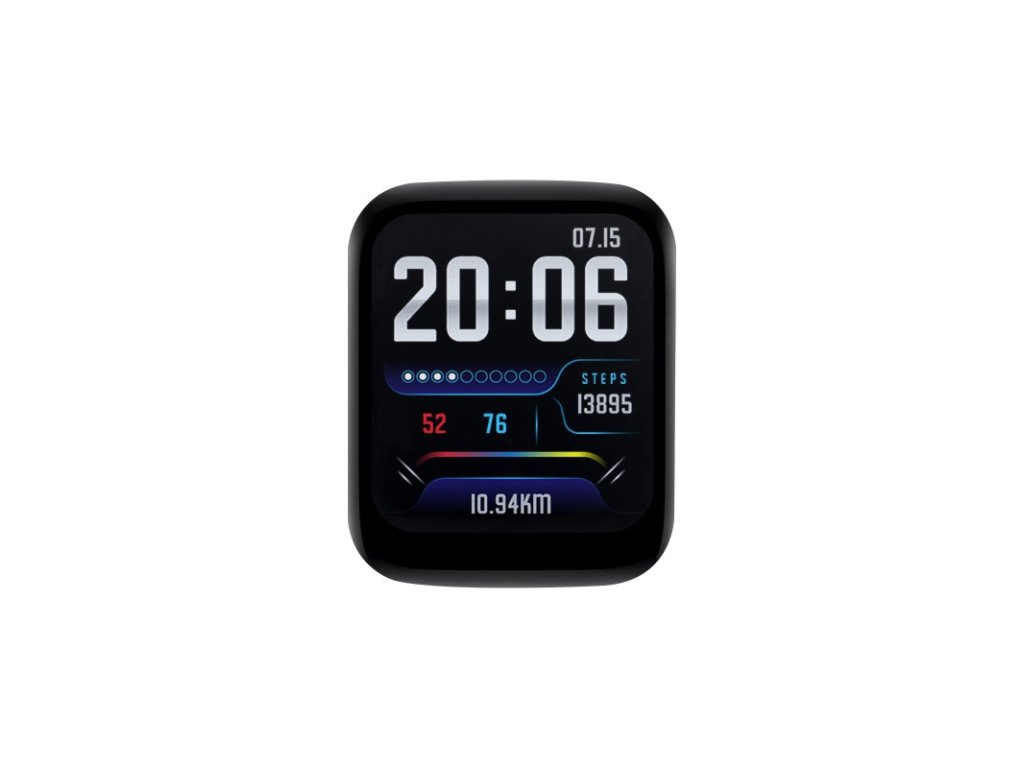

RP2040 1.69inch display development board, touch demo

Dual-Core Arm Processor

Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

Supports C/C++, MicroPython, Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

RP2040 1.69inch display development board, support C/C++, MicroPython, Arduino

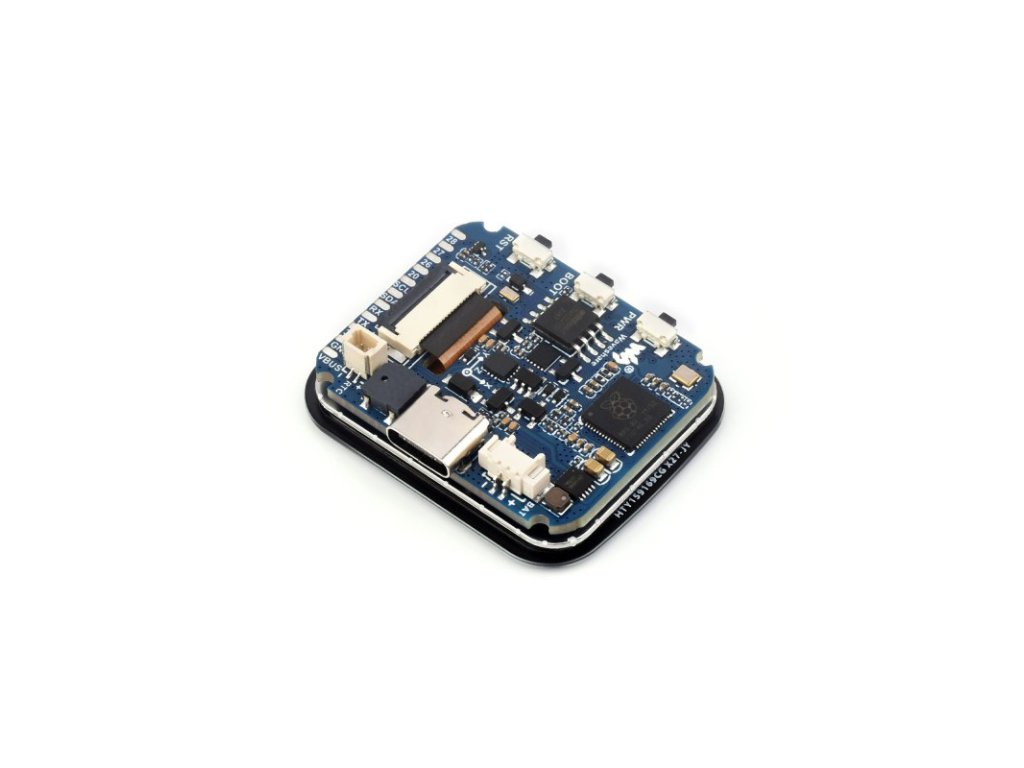

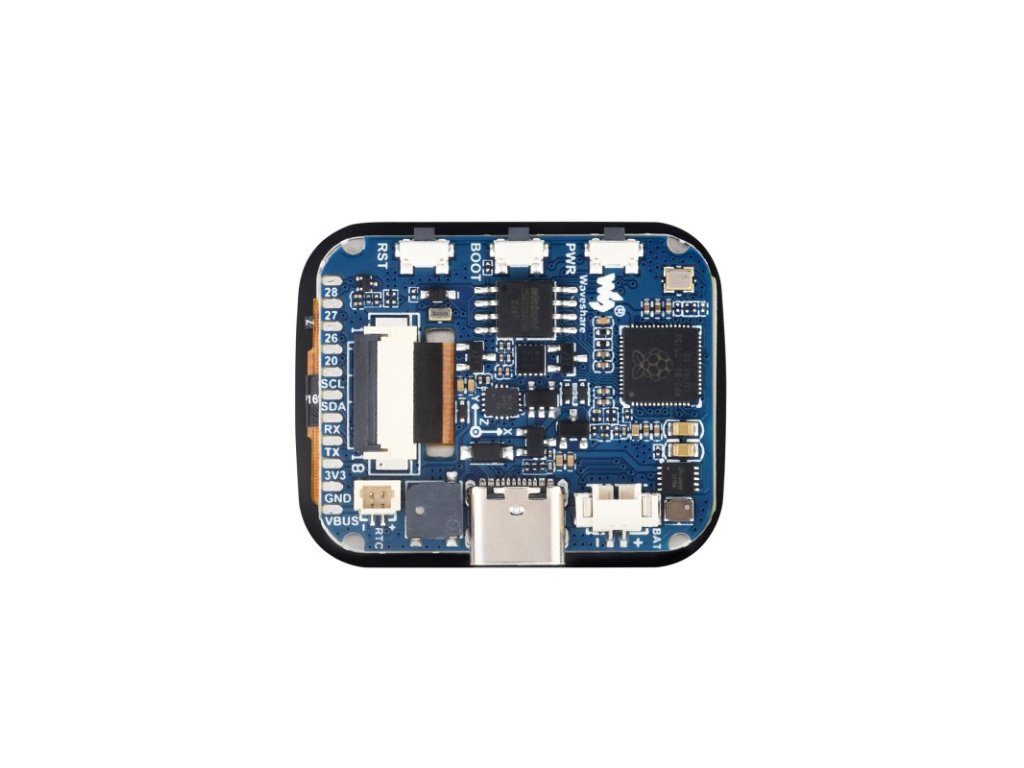

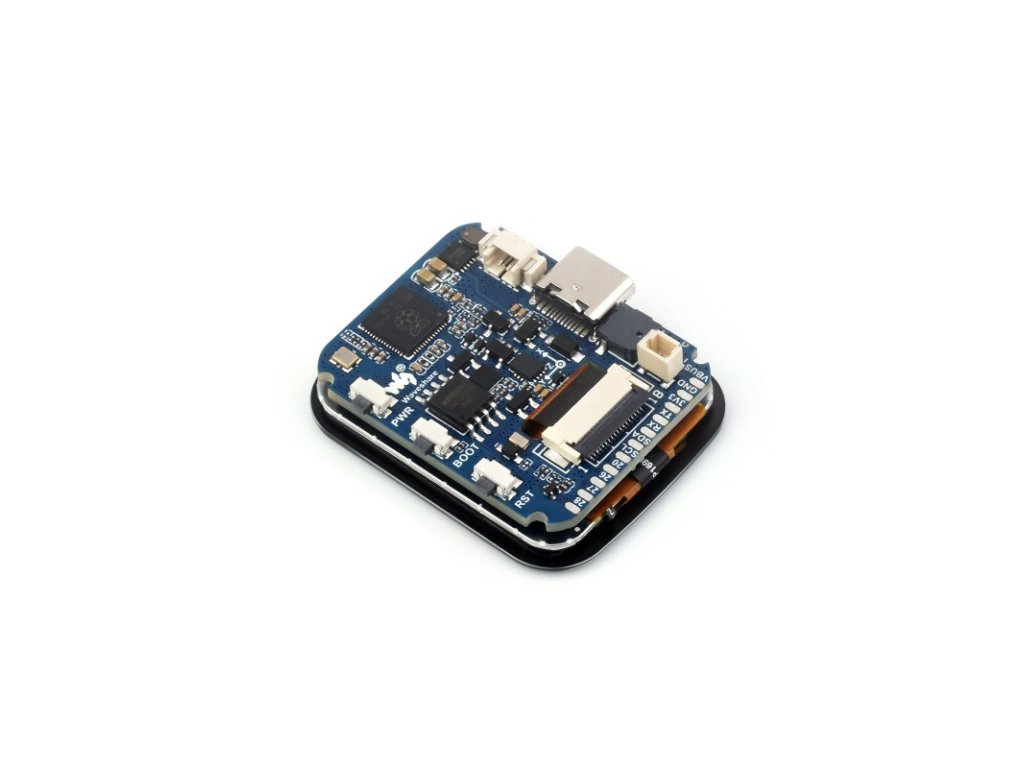

What's On Board

RP2040 1.69inch display development board, onboard components

RP2040
Dual-core processor, up to 133MHz operating frequency
W25Q128JVSIQ
16MB NOR-Flash
PCF85063
RTC chip
QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
ETA6098
high-efficiency Lithium battery recharge manager
MX1.25 battery header
MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging

Type-C connector
for programming, USB 1.1 with device and host support
Buzzer
sound-producing peripheral
RTC battery header
for connecting rechargeable RTC battery (only supports rechargeable RTC batteries)
PWM button
supports battery power supply control, single-press, double-press, multi-press and long-press operations
BOOT button
RST Reset button
